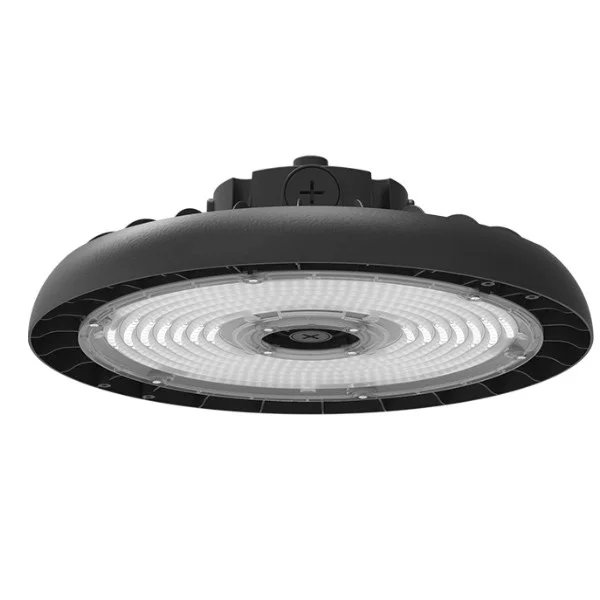

The ILP RB5S Round High Bay is a compact, performance-driven fixture in ILP’s RB5 lineup, built for demanding commercial and industrial environments. This configurable high bay combines selectable CCT, robust ingress protection, and efficient LED performance to support modern facility lighting upgrades.
Key Features and Benefits
- Selectable CCT (3500K/4000K/5000K) enables on-site tuning for visual comfort and task visibility.
- Rugged IP65 sealed construction with IK10 impact resistance helps withstand moisture, dust, and harsh operating conditions.
- 0-10V dimming compatibility supports energy-saving controls and occupancy/daylight strategies.
- Cold-forged die-cast aluminum body with polyester powder coat finish delivers long-term durability and corrosion resistance.
- Certified for demanding projects with ETL Listed, RoHS, NSF Rated, LM-79 Tested, LM-80 Tested, and Title 24 Compliant credentials.
- Backed by a 5-year standard warranty, with optional 10-year coverage.
Specifications
- Lumen Output: 9000
- Wattage: 56W
- Voltage: 120-277V
- Color Temperature: 3500K|4000K|5000K
- CRI: 80
- Dimming Type: 0-10V (10%-100%)
- Frequency: 50/60
- Power Factor: 0.90
- THD: 20
- Ingress/Impact Rating: IP65, IK10
- Rated Life (L70): 100000
- Operating Temperature (Standard): -40°F to 122°F
- Lens Material: Polycarbonate (clear)
- Housing Material: Die-cast aluminum

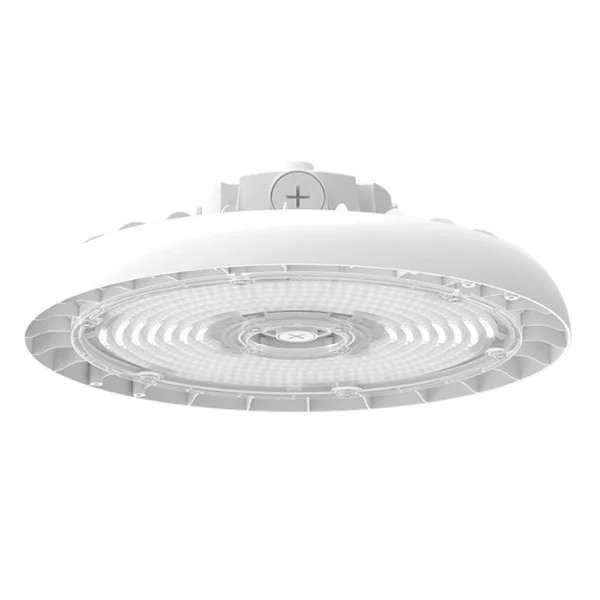

- Finish: White or Black powder coat
Common Uses
Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, fitness centers, grocery facilities, food processing areas, educational buildings, and other wet-location or high-demand indoor spaces.
