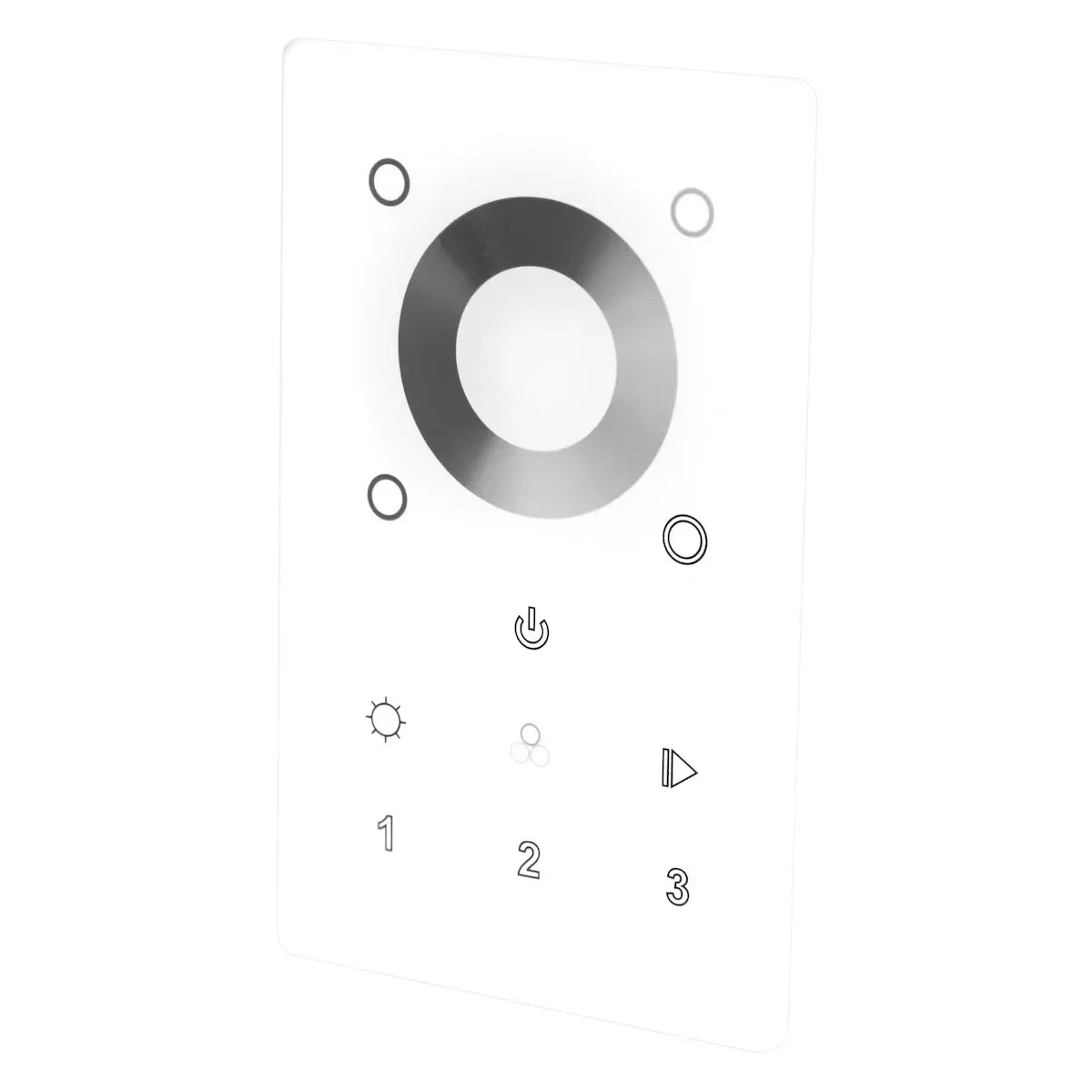

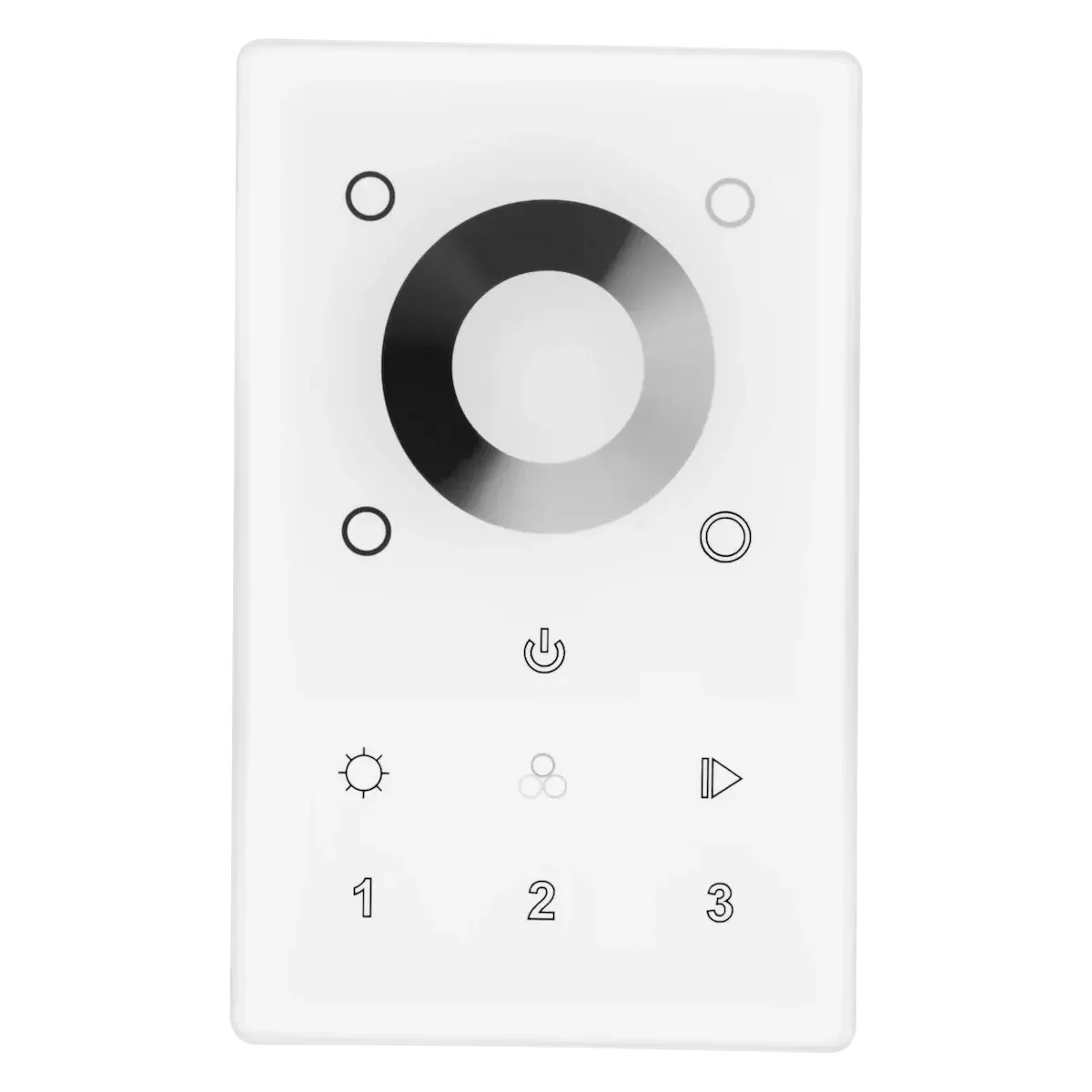

The Proluxe RGBW DMX Touch Controller is a wall-mounted control solution designed for dependable RGBW lighting management in DMX systems. As part of Proluxe’s RGBW control lineup, it combines intuitive touch operation with multi-zone flexibility for commercial and architectural lighting projects.
Key Features and Benefits
- Touch-sensitive wall plate interface for clean, modern control and easy day-to-day operation
- Independent RGBW channel control with smooth full-range dimming from 1-100%
- Supports 1 scene across 3 zones, ideal for segmented lighting layouts
- Includes 10 built-in auto presets and 3 dynamic RGB white blending modes for quick effects
- Certified FCC and RoHS compliant for confidence in code-conscious installations
- Backed by a 2-year limited warranty
Specifications
- Input Voltage: 12-24V DC
- Output: DMX 512 signal
- Power Consumption: 200mA
- Operating Temperature: 0b0C to 40b0C (32b0F to 104b0F)
- Relative Humidity: 8% to 80%
- Dimensions: 4-3/4″ x 2-31/32″ x 1-5/32″ (120mm x 75mm x 29.1mm)
- Location Rating: Dry locations
Common Uses
Commonly used in color-changing LED tape light and architectural accent systems in retail, hospitality, entertainment, and high-end residential interiors where DMX-based RGBW zone control is required.
