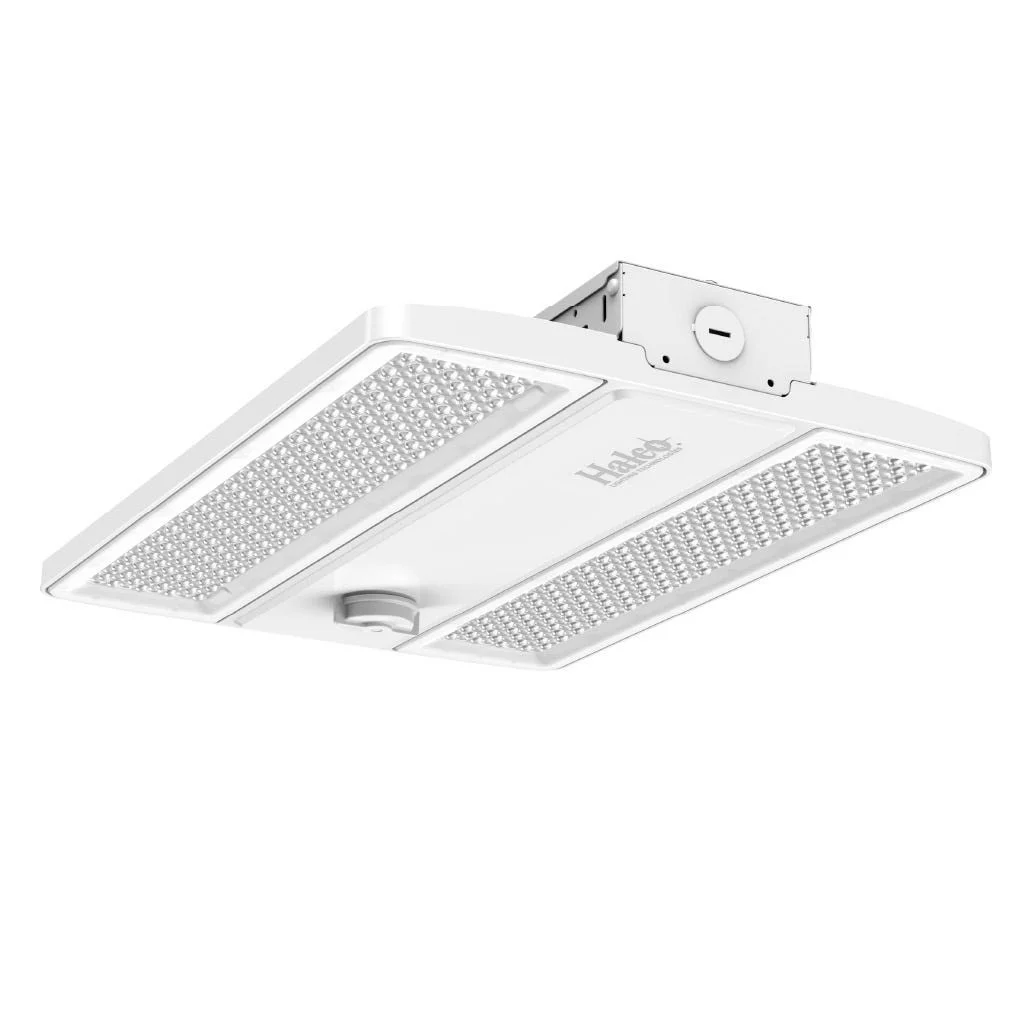

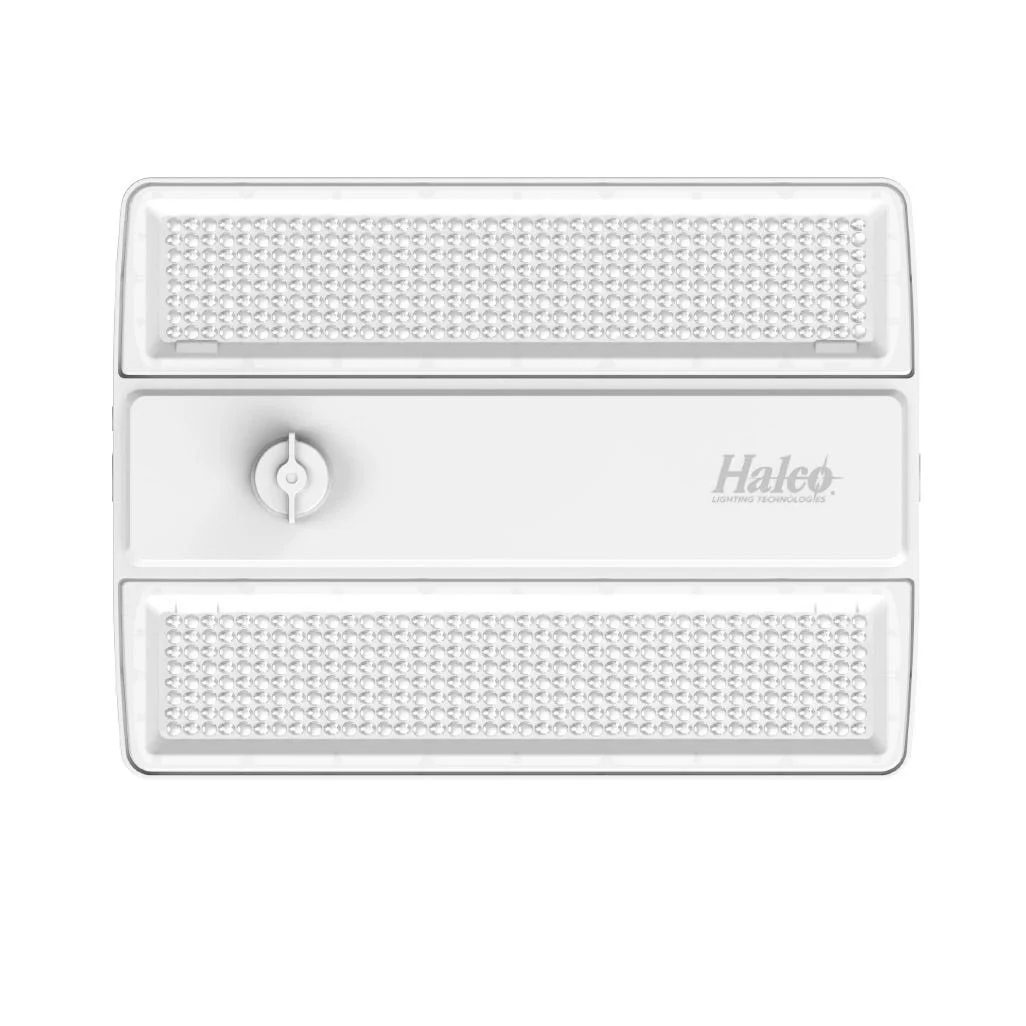

The Halco ProLED Select Compact Linear High Bay Series is built for high-ceiling commercial and industrial spaces that need flexible, high-performance illumination. This CLHB-1 configuration combines selectable output, CCT, and beam distribution in a compact form factor, making it a core solution in Halco’s modern high bay lineup.
Key Features and Benefits

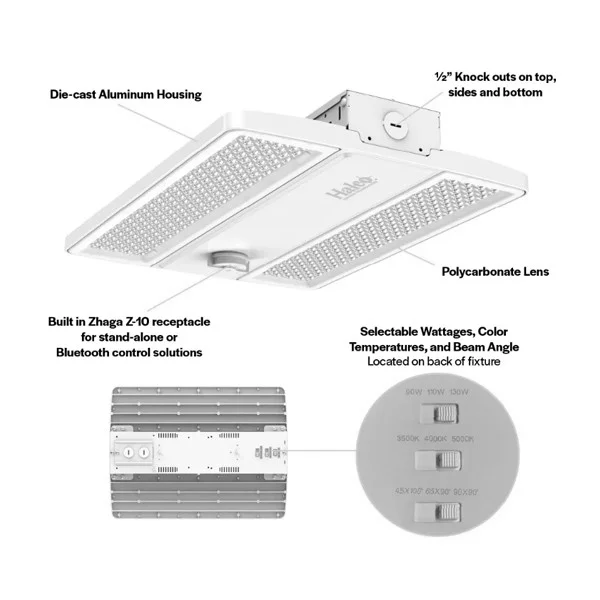

- Field-selectable light output and wattage let you fine-tune performance on site without changing fixtures.
- Selectable beam patterns support narrow, standard, or wide distribution to match aisle, open-area, or mixed layouts.
- Integrated Zhaga Z10 receptacle enables easy sensor and Bluetooth control upgrades for smarter energy management.
- Durable die-cast aluminum body improves thermal management for long service life in demanding environments.
- 0-10V dimming compatibility supports advanced lighting control strategies and additional energy savings.
- DLC Premium, cULus, FCC, and RoHS compliance with a 5-year limited warranty for dependable commercial deployment.
Specifications
- Lumen Output: 14600|17100|19500
- Wattage: 90W|110W|130W
- Voltage: 120-277V
- Color Temperature: 3500K|4000K|5000K
- CRI: 80
- Beam Angle: 45°x100°|65°x90°|90°x90°
- Efficacy (lm/W): up to 166
- Rated Life (L70): 100000+
- Power Factor: >0.9
- Dimming Type: 0-10V
- Operating Temperature: -40°C to 55°C
- IP Rating: IP20

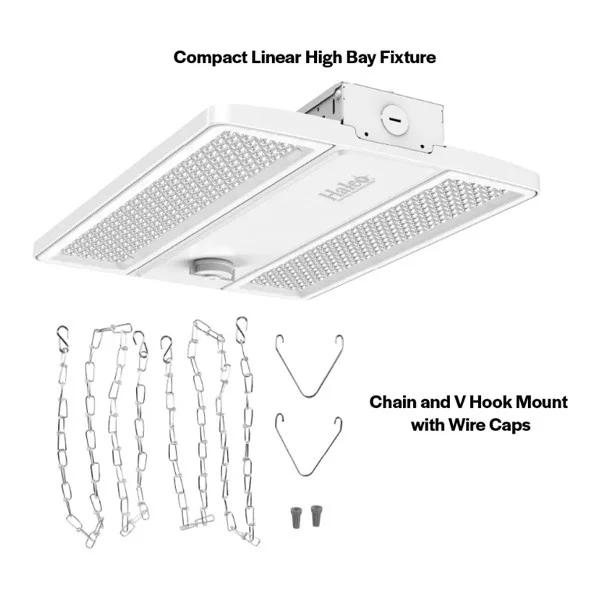

- Mounting: Chain and V-hook (standard)
- Housing Material: Die-cast aluminum
- Lens Material: Polycarbonate
- Weight: 7 lbs
Common Uses
Ideal for warehouses, gymnasiums, retail back-of-house areas, manufacturing spaces, and other large indoor environments requiring efficient, adaptable high bay lighting.
