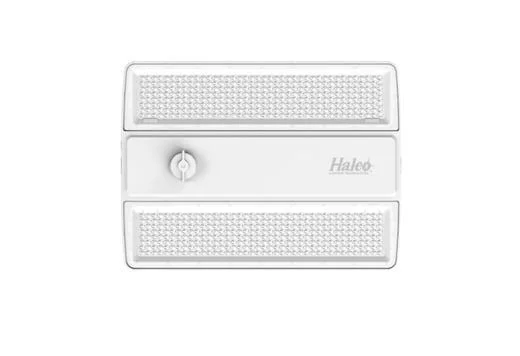

The Halco ProLED Select Compact Linear High Bay Series is engineered for high-performance illumination in demanding commercial and industrial interiors. This CLHB-2 configuration combines selectable output, CCT, and beam distribution in a compact form factor that simplifies installation and future flexibility. As part of Halco’s control-ready high bay lineup, it supports modern energy management strategies with integrated Z10 connectivity.
Key Features and Benefits
- Field-selectable light output and wattage let you fine-tune performance on site for changing layout or task needs.
- Selectable 3500K/4000K/5000K CCT supports visual comfort and application-specific lighting goals.
- Adjustable beam options (45°x100°/65°x90°/90°x90°) improve coverage for aisles, open floors, and mixed-use spaces.
- Integrated Zhaga Z10 receptacle enables plug-and-play sensor and Bluetooth control integration.
- Durable die-cast aluminum body and polycarbonate lens provide long-term reliability in commercial environments.
- DLC Premium, cULus listing, FCC, and RoHS compliance support rebate eligibility and code confidence, backed by a 5-year limited warranty.
Specifications
- Lumen Output: 19700/22500/24200
- Wattage: 125W/150W/165W
- Voltage: 120-277VAC
- Color Temperature: 3500K/4000K/5000K
- CRI: >80
- Dimming: 0-10VDC
- Beam Angle: 45°x100°/65°x90°/90°x90°
- Efficacy: 155-163 lm/W (at 90°x90°, 4000K)
- Rated Life: >100,000 hours (L70)
- Operating Temperature: -40°C to 55°C (-40°F to 131°F)
- IP Rating: IP20
- Weight: 7 lbs
Common Uses
Ideal for warehouses, gymnasiums, retail back-of-house areas, manufacturing spaces, and other large indoor facilities requiring efficient, adaptable high bay lighting with control-ready capability.
