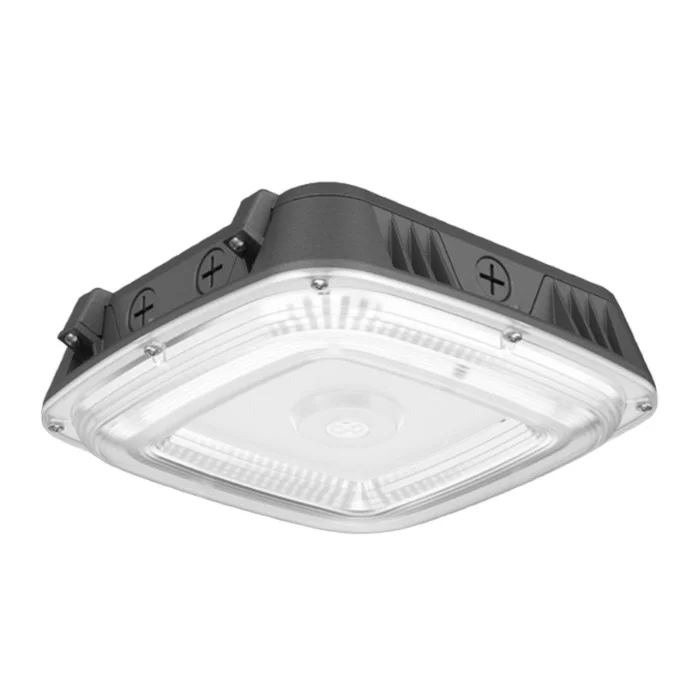

The Portor PT-CPY-S-80-3C5P is a square LED canopy fixture built for dependable outdoor and covered-area illumination. As part of Portor’s selectable canopy lineup, it combines field-adjustable wattage and CCT in one housing to simplify stocking and project flexibility.
Key Features and Benefits
- 5-step wattage selector (20W/40W/60W/70W/80W) supports on-site lumen tuning for different mounting heights and tasks
- 3CCT selector (3000K/4000K/5000K) allows warm-to-cool light customization per application
- Integrated photocell enables automatic dusk-to-dawn style control (on/off)
- Durable die-cast aluminum body with polycarbonate lens provides long-term performance in demanding environments
- 0-10V dimming (5-100%) supports energy-saving controls and smoother light level adjustment
- DLC and UL Listed with a 5-year limited warranty for code confidence and long-term value
Specifications
- Lumen Output: 3176-12348
- Voltage: 120-277V
- CRI: 80
- Frequency: 50/60
- Power Factor: 0.9
- THD: 20
- IP Rating: IP65
- Rated Life (L70): 50000 hours
- Surge Protection: L/N 6kV, L/N-P 6kV
- Dimensions: 10″ x 10″ x 2.96″
Common Uses
Ideal for covered parking areas, garages, canopies, walkways, building entrances, schools, healthcare facilities, hospitality properties, shopping centers, and light industrial sites.
