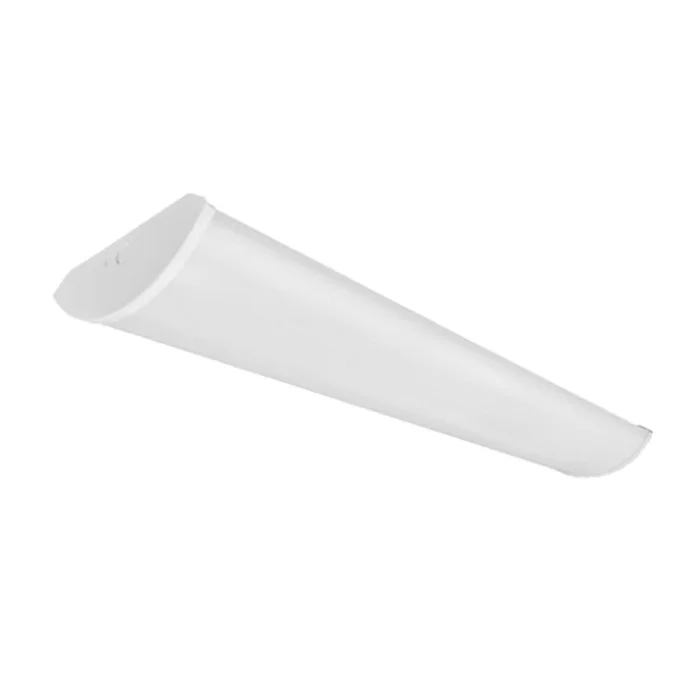

The Portor PT-WAA Arc Wraparound is a modern 4′ linear fixture built for flexible indoor commercial lighting upgrades. As part of Portor’s configurable wraparound lineup, it combines field-selectable wattage and CCT to simplify stocking while meeting varied light level needs.
Key Features and Benefits
- 5CCT and 4-wattage adjustability in one fixture for fast on-site tuning
- 0-10V dimming support for improved energy savings and lighting control
- Frosted diffuser and precision optics help reduce glare and improve visual comfort
- UL Listed and DLC Premium qualified for project confidence and rebate potential
- Long 100,000-hour L70 life and 5-year limited warranty for reduced maintenance
Specifications
- Wattage: 21W/26W/34W/40W
- Input Voltage: 120-277V, 50/60Hz
- CCT: 3000K/3500K/4000K/5000K/6500K
- CRI: 80+
- Delivered Lumens: 3282-6296
- Efficacy: 149-161 lm/W
- Power Factor: >0.9
- THD: ≤10%
- Operating Temperature: -4°F to +104°F
- Dimensions: 46″ L x 9.7″ W x 3.4″ H
- Housing: Aluminum alloy, white finish
Common Uses
Ideal for offices, corridors, stairwells, bathrooms, conference rooms, and other dry-location interior spaces requiring efficient, uniform general illumination.
