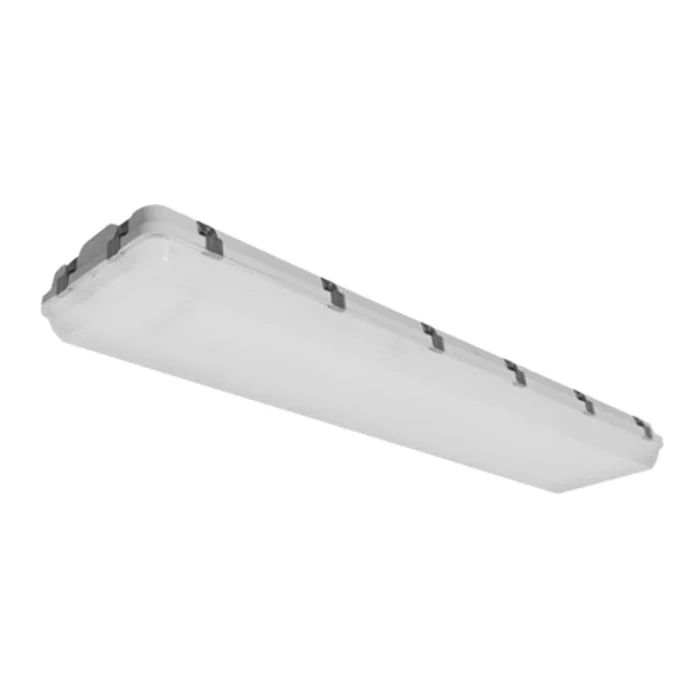

The Portor PT-VS-WD 4′ Wide Vapor-Seal Luminaire is a high-output, field-selectable fixture engineered for harsh commercial and industrial spaces. As part of Portor’s vapor-seal lineup, it combines rugged environmental protection with flexible CCT and wattage settings to simplify stocking and project design.
Key Features and Benefits
- Selectable light output and power (155W/185W/200W) to match application needs and reduce over-lighting.
- Tri-CCT flexibility (3500K/4000K/5000K) supports visual comfort across varied task environments.
- Built for tough conditions with IP66 ingress protection and IK10 impact resistance.
- 0-10V continuous dimming compatibility enables energy savings and control integration.
- Certified for demanding projects with UL Listed, DLC Premium, NSF Listed, and RoHS compliance.
- Backed by a 5-year limited warranty for dependable long-term operation.
Specifications
- Lumen Output: 25069-33436
- Voltage: 120-277V
- Frequency: 50/60Hz
- CRI: 80+
- Beam Angle: 110°
- Power Factor: >0.9
- THD: ≤10%
- Rated Life (L70): >100,000 hours
- Operating Temperature: -40°F to 122°F
- Construction: Polycarbonate housing and frosted polycarbonate lens with stainless steel clips
- Dimensions: 47.5″ L x 10.5″ W x 4.5″ H
Common Uses
Ideal for factories, tunnels, car washes, laboratories, cold storage, food processing facilities, and marine or vessel-related environments where moisture, dust, and spray resistance are essential.
