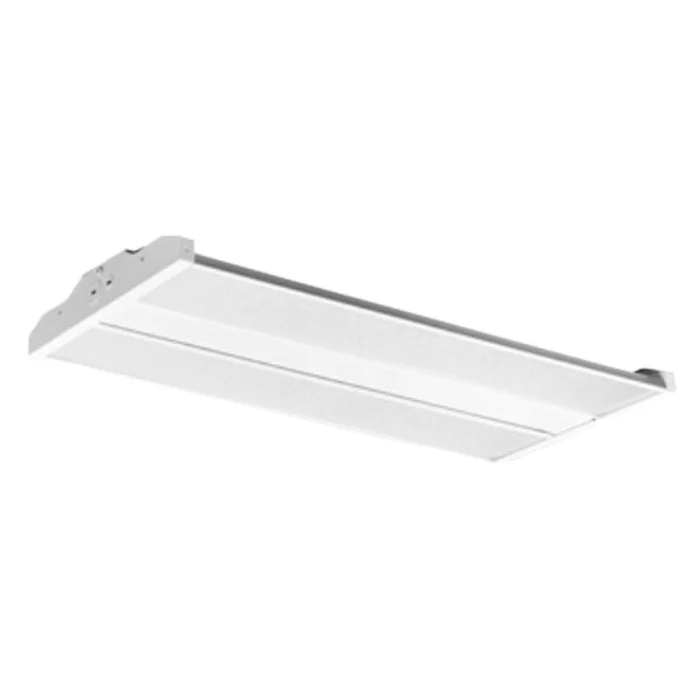

The Portor PT-LHTL-2C3P Series Twin Lens Linear High Bay is built for efficient, high-uniformity illumination in demanding commercial and industrial spaces. As part of Portor’s value-driven high bay lineup, this 115 model combines selectable wattage and CCT flexibility to simplify stocking and project design.
Key Features and Benefits
- Field-selectable output (78W/92W/115W) helps match light levels to changing ceiling heights and task needs.
- Dual CCT selection (4000K/5000K) supports both neutral and cooler visual environments from one fixture.
- Twin-lens 85° x 85° optical design improves distribution while reducing glare in open industrial areas.
- 0-10V continuous dimming standard for energy savings and control integration.
- Durable galvanized cold-rolled steel body with white powder-coat finish for long-term reliability.
- UL Listed and DLC Premium qualified, backed by a 5-year limited warranty for confidence in commercial installations.
Specifications
- Lumen Output: 11700|13800|17250
- Voltage: 120-277V
- Frequency: 50/60Hz
- CRI: 80
- Power Factor: 0.9
- THD: 10%
- Beam Angle: 85° x 85°
- Current: 1.54-3.33A
- Operating Temperature: -4°F to 122°F
- Rated Life: 100000 hours (L70)
- Dimensions: 16.8″ L x 10.2″ W x 1.8″ H
- Mounting: V-hooks standard
Common Uses
Ideal for large warehouses, parking and storage garages, gymnasiums, and retail facilities with high ceilings where efficient, uniform, and controllable lighting is essential.
