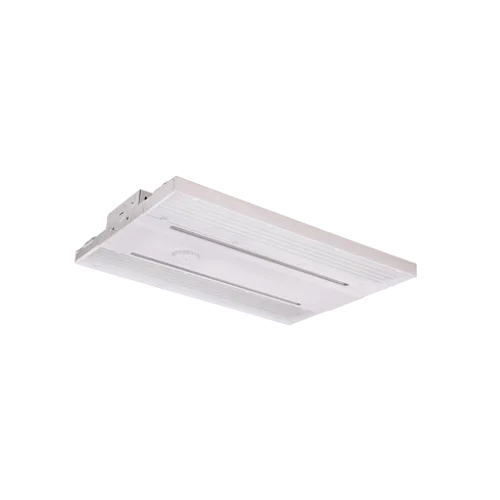

The Portor PT-LHD-150-3CP is a next-generation 14″ die-cast linear high bay fixture designed for high ceiling commercial applications. With selectable wattage and color temperature, this fixture offers flexibility, high performance, and durability for demanding environments.
Key Features and Benefits
- Selectable wattage (110W, 130W, 150W) and color temperature (3500K, 4000K, 5000K) for ultimate flexibility
- High lumen output up to 22,100lm for powerful illumination
- Durable die-cast aluminum frame withstands temperatures up to 131°F
- Lens Flex technology for adjustable beam angles (standard and aisle lens included)
- Continuous 0-10V dimming for energy savings and control
- UL and DLC Premium Listed for quality and rebates
- L70 rated for 100,000 hours for long-lasting performance
- Optional motion sensors and emergency battery backup available
Specifications
- Size: 14″
- Wattage: 110W | 130W | 150W
- Lumens: 16,344–22,100lm (depending on setting)
- Color Temperature: 3500K | 4000K | 5000K
- Voltage: 120-277V
- CRI: 80
- Power Factor: >0.9
- IP Rated for damp locations
- Operating Temp: -40ºF to 131ºF
- Includes V-hooks and chains for easy installation
Common Uses
Perfect for warehouses, parking garages, gymnasiums, retail stores, and other commercial spaces with high ceilings needing robust and efficient lighting.
