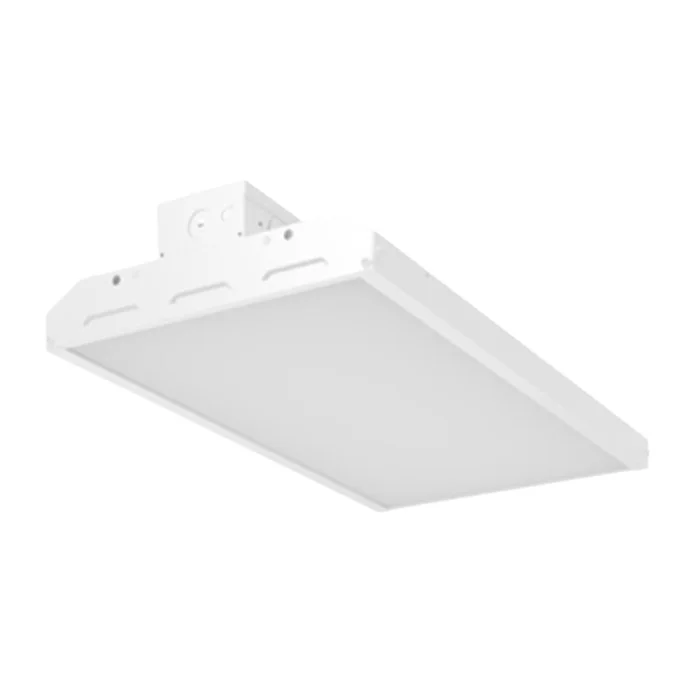

The Portor PT-LHB-2C3P Series is a next-generation linear LED high bay designed for demanding commercial high-ceiling environments. Built for efficiency and visual comfort, this fixture combines selectable wattage and CCT flexibility to simplify stocking and project design. It is a core Portor solution for warehouse and large-area lighting upgrades.
Key Features and Benefits
- Selectable output with 100W/120W/150W settings to match light levels and energy goals
- Dual CCT selection (4000K/5000K) for adaptable visual environments
- Smooth 0-10V dimming support for advanced lighting controls and energy savings
- Uniform, low-glare illumination from a frosted polystyrene lens design
- Certified performance with UL Listed and DLC Premium qualifications
- Backed by a 5-year limited warranty for dependable long-term operation
Specifications
- Lumen Output: 15651-22647
- Voltage: 120-277V
- CRI: 82
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: ≤20%
- Rated Life (L70): >100000 hours
- Operating Temperature: -40°F to 122°F
- IP Rating: IP40
- Dimensions: 23.8″ L x 13″ W x 3.6″ H
Common Uses
Ideal for large warehouses, parking and storage garages, gymnasiums, and retail facilities with high mounting heights where efficient, reliable, and controllable illumination is required.
