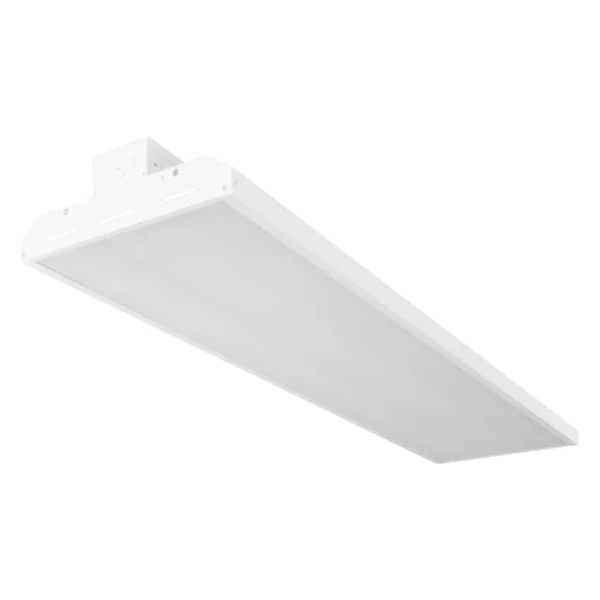

The Portor PT-LHB-2C3P Series linear high bay is a next-generation commercial fixture designed for high-ceiling environments that demand strong, efficient illumination. Built with selectable wattage and CCT options, this model gives contractors and facility teams flexibility while maintaining dependable performance across large indoor spaces.
Key Features and Benefits
- Selectable power settings (130W/170W/215W) help tailor light levels to changing layout and task needs.
- Dual CCT selection (4000K/5000K) supports both neutral and cooler visual environments.
- 0-10V continuous dimming compatibility enables energy-saving control strategies.
- Durable aluminum alloy housing with frosted polystyrene lens delivers uniform light with reduced glare.
- Certified for quality and compliance with UL Listed and DLC Premium qualifications.
- Backed by a 5-year limited warranty for long-term commercial confidence.
Specifications
- Lumen Output: 20183|20513|26171|26270|32389|32813
- Voltage: 120-277V
- Color Temperature: 4000K|5000K
- CRI: 82
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: ≤20%
- Rated Life (L70): 100000+ hours
- IP Rating: IP40
- Operating Temperature: -40°F to 122°F
- Dimensions: 46″ L x 13″ W x 3.6″ H
- Mounting: V-hooks and chains included; optional pendant and surface mount kits
Common Uses
Ideal for warehouses, storage and parking garages, gymnasiums, and big-box or retail facilities with high mounting heights where efficient, uniform general lighting is required.
