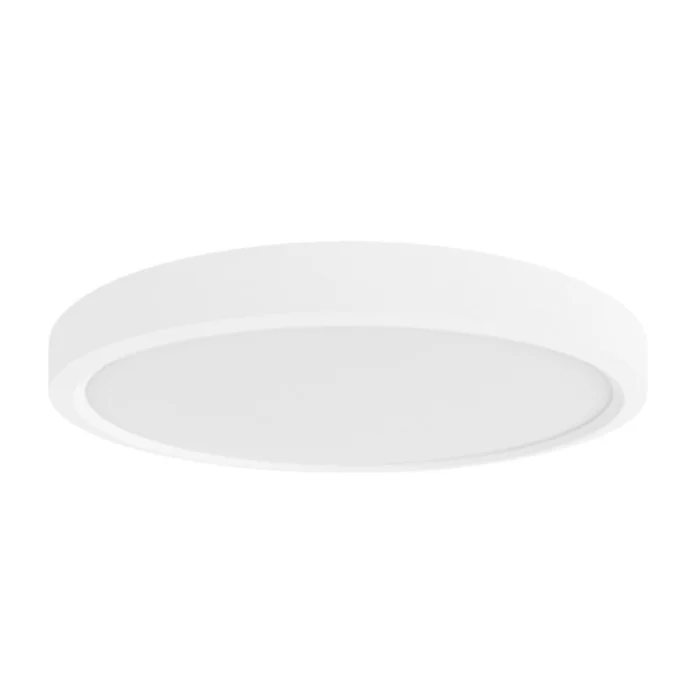

The Portor PT-DLSM-R-3 Series is a slim round surface mount downlight designed for spaces where recessed installation is not practical. This 12″ model delivers strong light output with selectable 5CCT tuning, making it a versatile choice across residential and multi-unit applications. As part of Portor’s surface-mount lineup, it combines clean aesthetics, dependable performance, and easy J-box installation.
Key Features and Benefits
- Selectable 5CCT technology lets you choose 2700K, 3000K, 3500K, 4000K, or 5000K on one fixture
- Edge-lit optical design helps provide smooth illumination with reduced glare and no visible dark spots
- TRIAC dimming compatibility supports flexible light levels from 100% down to 10%
- Wet-location and IC-rated construction expands installation options, including insulated ceiling areas
- Certified for quality and compliance with ETL Listed, FCC, RoHS, CE, Energy Star, and JA8 Title 24 compliance
- Backed by a 5-year limited warranty for long-term confidence
Specifications
- Lumen Output: 2141|2159|2182|2193|2186
- Wattage: 24W
- Voltage: 120V
- CRI: 90
- Beam Angle: 120°
- Frequency: 60Hz
- Power Factor: >0.9
- THD: ≤20%
- Rated Life (L70): 150000 hours
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Fixture Diameter: 12.04″
- Fixture Height: 0.98″
Common Uses
Ideal for closets, hallways, bathrooms, kitchens, basements, entryways, covered porches, garages, stairwells, corridors, condos, apartments, and other compact areas that need low-profile surface-mounted lighting.
