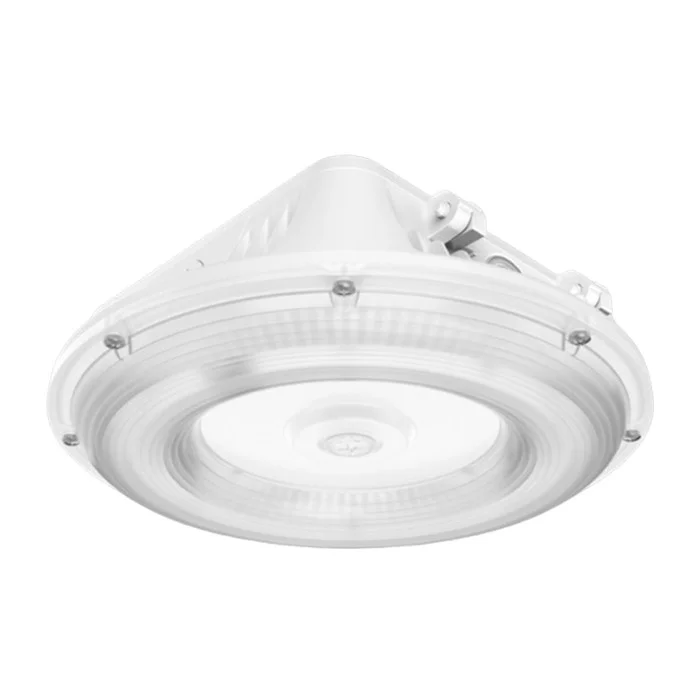

The Portor PT-CPY-R-80-3C5P is a round, field-selectable LED canopy fixture designed for dependable commercial exterior lighting. As part of Portor’s flexible canopy lineup, it combines multi-watt and multi-CCT adjustability with durable construction for retrofit and new-install projects.
Key Features and Benefits
- 5 selectable wattages (20W/40W/60W/70W/80W) to match light levels and reduce overlighting
- 3 selectable CCTs (3000K/4000K/5000K) for warm to crisp white appearance tuning
- Integrated photocell standard with ON/OFF capability for automatic dusk-to-dawn control
- Rugged die-cast aluminum body and polycarbonate lens for long-term outdoor durability
- 0-10V dimming (5-100%) supports energy-saving lighting controls
- DLC and UL Listed with a 5-year limited warranty for code confidence and project reliability
Specifications
- Lumen Output: 3,163-12,338 lm (depending on wattage/CCT setting)
- Input Voltage: 120-277V, 50/60Hz
- CRI: 80
- Power Factor: >0.9
- THD: ≤20%
- Surge Protection: 6kV (L/N), 6kV (L/N-P)
- Ingress Protection: IP65, wet location
- Rated Life: L70 50,000 hours
- Dimensions: 10″ diameter x 3.06″ height
Common Uses
Ideal for covered parking areas, parking garages, canopies, walkways, building entrances, schools, healthcare facilities, hospitality properties, shopping centers, and light industrial sites.
