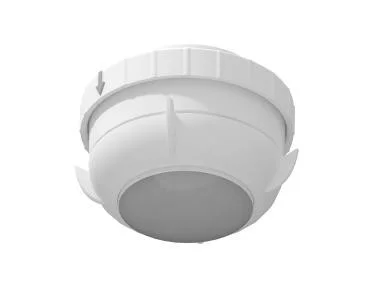

The Network Node Round, PIR Motion Sensor Daylight Harvesting, White is a versatile and advanced lighting control solution. It is part of MaxLite’s innovative c-Max series, offering a comprehensive suite of features to enhance energy efficiency and user convenience.
Key Features and Benefits
- Wireless Bluetooth technology for seamless communication
- PIR motion sensor for automatic lighting control
- Daylight harvesting to optimize energy usage
- Simple plug-and-play installation
- Easy commissioning with c-Max App on iOS and Android
- Vandal-resistant design with locking screw
- 5-year warranty with an option for extension
Specifications
- Overall Dimensions: Ø63mm x 48.2mm
- Color: White
- Operating Voltage: 12-20VDC
- Operating Current: Max 35mA
- Control Output: 0-10V
- Radio Frequency: 2.4GHz ± 75MHz
- Wireless Standard: BLE 4.2 MESH IEEE 802.15.1
- IP Rating: IP66
- Operating Temperature: -40°F to 130°F / -40°C to 55°C
Common Uses
Ideal for site lighting, parking garages/lots, warehouses, industrial spaces, and commercial applications where energy efficiency and control are paramount.
