The Westgate EL Series EL-M5-HO-WP is a modern mini emergency light designed for dependable egress illumination in commercial and high-occupancy spaces. As part of Westgate’s emergency lighting lineup, it combines compact styling with intelligent control and flexible aiming for reliable life-safety performance.
Key Features and Benefits

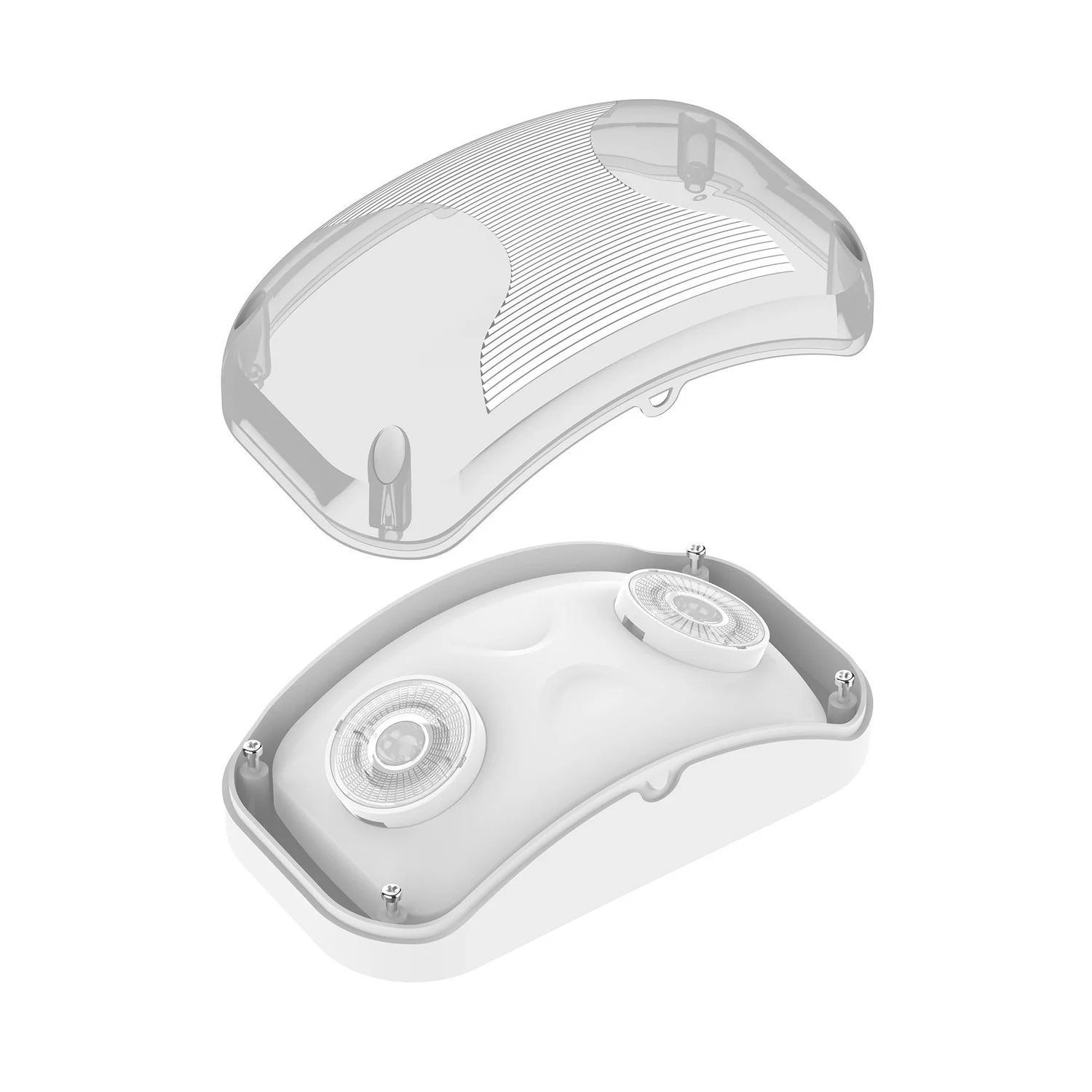

- Dual fully adjustable LED lamp heads provide targeted light distribution for open areas and escape routes.
- Built-in 3.6V 1000mAh Ni-MH battery supports minimum 90-minute emergency runtime during power loss.
- Integrated self-test support with test switch and LED charge indicator simplifies routine maintenance checks.
- Suitable for wet-location applications with optional IP65 box configuration for broader installation flexibility.
- UL Listed construction and 5-year warranty support long-term code-focused reliability.
Specifications
- Voltage: 120-277V AC, 50/60Hz
- Wattage: 1.5W per head (2 heads)
- Lumen Output: 200LM total
- Color Temperature: 5700K
- Efficacy: 66 lm/W
- Power Factor: >0.90
- Operating Temperature: 32° to 113°F
- Dimensions: 5″(H) x 8.93″(W) x 3.6″(D)
- Mounting: Surface mount with universal J-box pattern
- Aiming: 90° vertical tilt and 350° horizontal rotation
- Recharge Time: 24 hours maximum
- BUG Rating: B0-U1-G0
Common Uses
Ideal for corridors, stairwells, exits, and general egress paths in offices, retail spaces, multifamily buildings, schools, and other commercial facilities requiring emergency illumination and wet-location capable fixtures.
