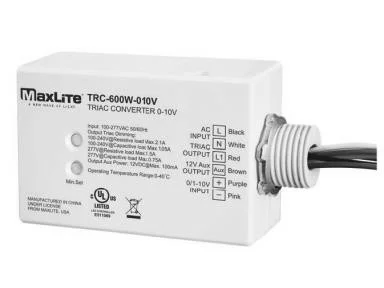

The MaxLite TRC-600W-010V is a versatile TRIAC converter designed to convert 0-10V signals to TRIAC dimming, offering seamless integration with downlights and chandeliers. This product is ideal for both retrofit and new construction applications, providing a reliable solution for various lighting environments.
Key Features and Benefits
- Converts 0-10V signal to TRIAC dimming for enhanced compatibility.
- Class 2 device with standard 1/2” threaded nipple for easy junction box attachment.
- Built-in 0-10V interface for sensor, node, or dimmer connectivity.
- Compatible with universal 0-10V signal and c-Max Lighting controls.
- Integrated 12V aux power supply output for sensor and IoT applications.
- Supports reverse edge (trailing edge) type LED driver.
- 5-year warranty
Specifications
- Operating Voltage: 120-277V
- Operating Frequency: 50/60Hz
- Max Load Current: 2.1A
- Input Signal Dimming: Analog 0-10V (Linear)
- Output Dimming: Forward/Reverse phase dimming
- Output Aux Power: 12V 80mA max
- Safety: cULus Listed E511069
- FCC: 47 CFR Part 15, Subpart A
- Operating Temperature: 32°F to 104°F / 0°C to 40°C
- Relative Humidity: 8~80% non-condensing
- Color: White
- Dimensions: 3.24″ x 2.16″ x 1.22″ (LxWxH)
Common Uses
Ideal for office spaces, showrooms, lobbies, retail environments, hospitality, schools, universities, and multi-family residential settings.
