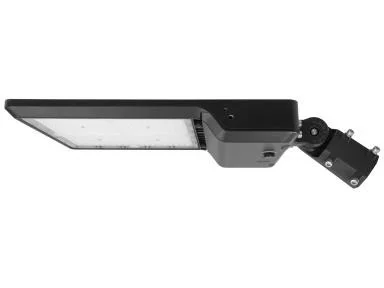

The MaxLite Slim AE Area Fixture is a high-efficacy outdoor luminaire engineered for new construction and retrofit pole lighting projects. As part of MaxLite’s versatile Slim AE lineup, it combines field-ready controls capability, selectable output, and durable construction for long-term area illumination performance.
Key Features and Benefits
- Selectable light output and CCT provide flexible on-site tuning for changing project needs.
- Controls-ready design supports future c-Max upgrades for smarter outdoor lighting management.
- Built for reliability with ANSI 3G vibration rating and integrated surge protection for demanding environments.
- Long-life LED platform reduces maintenance cycles and operating costs over time.
- DLC Premium, UL Listed, IP65, RoHS, FCC, and Title 24 JA8 support broad project compliance requirements.
- Backed by a 10-year standard warranty for added peace of mind.
Specifications
- Lumen Output: 18422-21603
- Wattage: 150W|120W|100W
- Voltage: 120-277V
- Distribution Type: Type III
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Dimming Type: 0-10V
- Efficacy (lm/W): 123-146
- Rated Life (L70): 100000
- Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
- Housing Material: Die-cast aluminum
- Lens Material: Polycarbonate
- Mounting: 2-3/8″ OD adjustable slipfitter
- Weight: 8.73lb (with slipfitter)
Common Uses
Ideal for parking lots, roadways, campuses, commercial perimeters, industrial sites, and other pole/arm-mounted outdoor area lighting applications requiring dependable illumination and control-ready flexibility.
