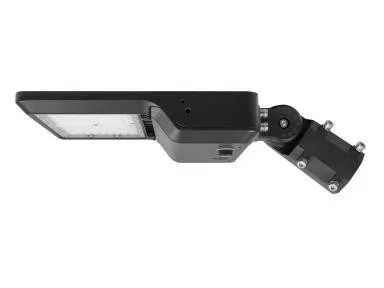

The MaxLite Slim AE Area Fixture is a high-performance outdoor luminaire engineered for efficient area and roadway illumination. As part of MaxLite’s versatile Slim AE lineup, this 100W model combines selectable CCT, controls-ready flexibility, and durable construction for both new installations and retrofit projects.
Key Features and Benefits
- Controls-ready platform supports field-installed c-Max control upgrades for smarter site lighting.
- Selectable 3000K/4000K/5000K output helps tailor visibility and ambiance to site requirements.
- Type IV distribution delivers broad forward throw ideal for perimeter and parking applications.
- Rugged die-cast aluminum housing with corrosion-resistant powder coat stands up to outdoor environments.
- Includes enhanced surge protection (6kV driver-integrated + 10kA standalone) for improved reliability.
- Backed by a 10-year warranty and listed for DLC Premium, UL, FCC, RoHS, and Title 24/JA8 compliance support.
Specifications
- Lumen Output: 11,572-13,012
- Wattage: 100W (selectable down to 80W/60W)
- Voltage: 120-277V
- Distribution Type: Type IV
- CRI: ≥80
- Dimming Type: 0-10V
- Efficacy: 118-140 lm/W
- Rated Life (L70): 100,000+ hours
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Lens Material: Polycarbonate
- Housing Material: Die-cast aluminum
- Mounting: 2-3/8″ OD adjustable slipfitter
- Weight: 7.56 lb (with slipfitter)
Common Uses
Ideal for parking lots, site perimeters, roadways, campuses, commercial complexes, and general pole-mounted outdoor area lighting where dependable performance and controllability are required.
