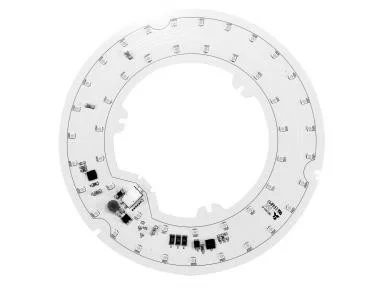

MaxLite LER Series Round LED Light Engine, 7″ Diameter, 23W, 3000K, 90 CRI, 120V

The MaxLite LER Series Round LED Light Engine is a compact, driver-on-board module designed for efficient integration into new luminaire builds. Built around the 7.0″ platform, this configuration balances strong lumen output, high color quality, and dependable electrical performance. It is a practical core light source for manufacturers and fixture builders needing consistent LED performance in ceiling and decorative fixture formats.

Key Features and Benefits

• Driver-on-board design connects directly to 120V for simplified fixture integration
• High 90 CRI light quality improves visual clarity and color appearance
• Smooth dimming down to 5% with compatible ELV/LED controls
• RoHS-compliant construction with no mercury for environmentally conscious projects
• Certified to UL Recognized, FCC, LM-79 Tested, and LM-80 Tested standards
• Backed by a 5-year manufacturer warranty for long-term confidence

Specifications

• Lumen Output: 2145
• Wattage: 23W
• Voltage: 120V
• Color Temperature: 3000K
• CRI: 90
• Efficacy: 90 lm/W
• Power Factor: 0.980
• Rated Life (L70): 50000 hours
• Operating Temperature: 0°F to 104°F
• Maximum Surface Temperature (Tc): 194°F (90°C)
• Diameter: 7″
• Light Source: Lumileds 3030 2D chips on metal core board

Common Uses

Ideal for ceiling lights, flush mount fixtures, and pendant fixtures in residential and light commercial environments where compact form factor, dimming capability, and reliable lumen maintenance are required.
