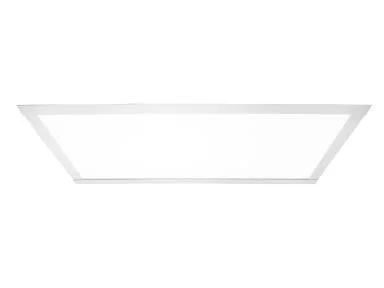

The MaxLite FPR Series LED Flat Panel Retrofit Kit is a practical, high-performance solution for converting fluorescent troffers to modern LED lighting without removing the existing housing. Designed for fast below-ceiling installation, it helps reduce labor costs while delivering clean, uniform illumination for commercial interiors. As part of MaxLite’s retrofit lineup, it offers dependable efficiency, long life, and flexible CCT options for broad project compatibility.
Key Features and Benefits
- Fast retrofit design installs into most existing lensed and parabolic troffers without disturbing the ceiling plenum.
- Edge-lit LED architecture provides smooth, low-glare light and a slim profile for a clean finished appearance.
- Selectable CCT options (3500K, 4000K, 5000K) support varied visual comfort and application needs.
- Compatible with standard 0-10V dimming controls for improved energy management and lighting control.
- Certified for quality and compliance with ETL Listed, FCC, RoHS, and DLC Standard qualifications.
- Backed by a 10-year limited warranty for long-term confidence in commercial installations.
Specifications
- Lumen Output: 4136
- Wattage: 40W
- Voltage: 120-277V
- CRI: 80
- Efficacy (lm/W): 102
- Rated Life (70 Hours): 100000
- Power Factor: 0.9
- Ambient Temperature: -4°F to 104°F
- Dimensions: 45.8″ x 22.1″ x 0.4″
- Environment: Indoor
Common Uses
Ideal for office spaces, schools, healthcare facilities, retail stores, hospitality properties, and other indoor commercial environments where existing troffers need an efficient LED upgrade.
