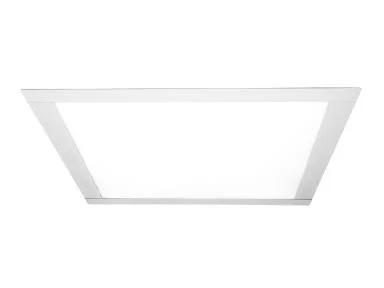

The MaxLite FPR Series LED Flat Panel Retrofit Kit offers a fast, cost-effective way to convert fluorescent troffers to modern LED performance without disturbing the ceiling plenum. Designed for existing 2’x2′ housings, this retrofit improves visual comfort with edge-lit uniformity and low glare. It is a key solution in MaxLite’s commercial interior lineup for efficient office, education, healthcare, and retail upgrades.
Key Features and Benefits
- Quick below-ceiling retrofit design minimizes labor time and installation disruption.
- Edge-lit architecture provides smooth, even illumination with a slim, clean appearance.
- Supports standard 0-10V dimming for flexible light-level control.
- Commercial-grade reliability with 100,000-hour L70 life and high efficacy performance.
- Certified for quality and compliance: ETL Listed, FCC, RoHS, and DLC Standard qualified.
- Backed by a 10-year limited warranty for long-term project confidence.
Specifications
- Lumen Output: 3080
- Wattage: 30W
- Voltage: 120-277V
- Color Temperature: 5000K
- CRI: 80
- Efficacy: 102 lm/W
- Rated Life (L70): 100000 hours
- Power Factor: 0.9
- Dimensions: 22.1″ x 21.8″ x 0.4″
- Ambient Operating Temperature: -4°F to 104°F
- Primary Materials: Aluminum frame with steel back
- Environment: Indoor
Common Uses
Ideal for retrofitting lensed or parabolic fluorescent troffers in offices, schools, healthcare facilities, hospitality spaces, and retail environments where energy savings, fast installation, and uniform light quality are priorities.
