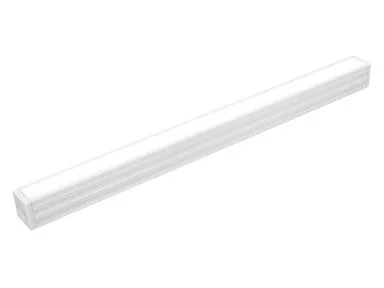

The MaxLite LB Series Plug-and-Play LED Lightbar is a compact linear fixture designed for flexible task and accent lighting layouts. This 12″ high-output 3500K model combines strong lumen performance with simple linking and mounting options, making it a practical choice across commercial and residential projects. As part of MaxLite’s Lightbar lineup, it offers an efficient alternative to traditional linear fluorescent and halogen solutions.
Key Features and Benefits
- High-output 12″ configuration delivers strong illumination for short-run task and accent applications.
- TRIAC dimming support enables smooth light-level control down to low output levels with compatible controls.
- Linkable bar design with included joiner and mounting hardware simplifies continuous-run installations.
- Architectural diffuser helps reduce visible hot spots for clean, even light distribution.
- Durable extruded aluminum body with powder-coated finish supports long-term reliability.
- ETL listed and Energy Star qualified with a 5-year warranty for added project confidence.
Specifications
- Lumen Output: 567
- Wattage: 9.8W
- Voltage: 120V
- Color Temperature: 3500K
- CRI: 80
- Power Factor: 0.980
- Rated Life (L70): 50000 hours
- Operating Temperature: 0°-104°F
- Dimensions: 12″ length, 0.79″ width, 0.83″ height
- Dimming Type: TRIAC (Phase)
- Environment: Damp location
Common Uses
Ideal for under-cabinet lighting, general cove lighting, accent and indirect lighting, wall washing, display illumination, and base cabinet toe-kick applications in retail, hospitality, gaming, and residential interiors.
