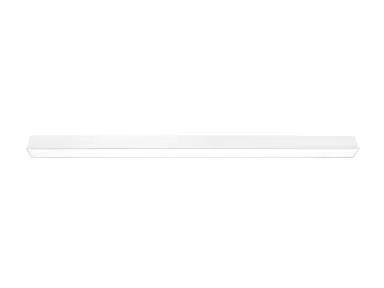

The MaxLite L-Max Linear LED Luminaire is a compact, high-performance linear fixture designed for modern commercial interiors. Built for surface or suspended mounting, this 4′ model delivers efficient, low-glare illumination while supporting emergency egress lighting needs. As part of MaxLite’s L-Max lineup, it offers a practical blend of performance, flexibility, and long-life value.
Key Features and Benefits
- Integrated emergency battery backup option enhances safety and code-focused lighting readiness.
- 0-10V dimming capability supports smooth light-level control for energy savings and visual comfort.
- Linkable design allows continuous runs up to 10 units or 40′ for clean, seamless linear layouts.
- Durable 19-gauge aluminum housing with polycarbonate diffused lens helps reduce glare and maintain a refined appearance.
- ETL Listed and RoHS compliant construction supports reliable commercial specification.
- Backed by a 5-year limited warranty.
Specifications
- Lumen Output: 5262
- Wattage: 40W
- Voltage: 120-277V
- Color Temperature: 3500K
- CRI: 80
- Efficacy: 132 lm/W
- Rated Life (L70): 100000 hours
- Power Factor: 0.9
- Operating Temperature: 10°C to 40°C
- Mounting: Surface Mount | Suspended Mount
- Environment: Indoor | Damp Location
Common Uses
Ideal for offices, retail stores, supermarkets, stairwells, and other interior commercial spaces requiring efficient linear illumination, clean aesthetics, and emergency-capable operation.
