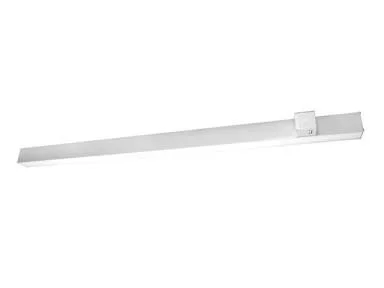

The MaxLite L-Max Linear LED Luminaire is a compact, high-performance linear fixture designed for modern commercial interiors. As part of MaxLite’s L-Max series, it delivers clean, low-glare illumination with flexible mounting and linking options for continuous runs. This model is ideal for projects that need efficient, dependable lighting with integrated controls.
Key Features and Benefits
- Delivers bright, uniform architectural lighting with a frosted polycarbonate lens for reduced glare.
- Built-in bi-level high-frequency motion sensor option helps improve energy savings in occupied spaces.
- Supports both surface and suspended installation, with adjustable 10′ aircraft cables included for pendant mounting.
- Linkable design allows continuous runs up to 10 fixtures or 40′ for seamless linear layouts.
- ETL Listed and RoHS compliant construction supports code-conscious commercial applications.
- Backed by a 5-year limited warranty
Specifications
- Lumen Output: 5262
- Wattage: 40W
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: 80
- Dimming Type: 0-10V
- Power Factor: 0.9
- Efficacy: 132 lm/W
- Rated Life (L70): 100000 hours
- Operating Temperature: 10°C to 40°C
- Humidity: 20-85% RH, non-condensing
- Mounting: Surface Mount | Suspended Mount
- Dimensions: 47.91″ L x 2.43″ W x 2.35″ H
- Housing: 19-gauge aluminum body and end caps
- Lens: Polycarbonate diffused lens
Common Uses
Commonly used in offices, retail stores, supermarkets, stairwells, and other indoor commercial environments where efficient, low-glare linear illumination and clean architectural aesthetics are required.
