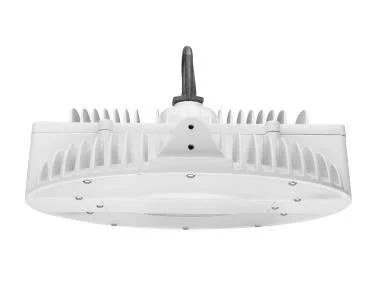

The MaxLite HP Gen. 2 Round Pendant LED High Bay is a performance-driven fixture designed for demanding commercial and industrial interiors. Built as part of MaxLite’s premium high bay lineup, it combines high efficacy, low-glare optics, and a compact profile for modern high-ceiling applications.
Key Features and Benefits
- High-output performance delivering up to 17,495 lumens in this 130W frosted-lens configuration for strong vertical and horizontal illumination.
- Energy-saving 0-10V dimming capability supports advanced lighting controls and reduced operating costs.
- Engineered for harsh environments with operation up to 50°C (122°F) and robust die-cast thermal management.
- Damp-location rated design with integrated LED architecture for long service life and reduced maintenance.
- Certified for commercial projects with UL Listed, FCC, LM-79 tested, and RoHS-compliant construction.
- Backed by a 10-year limited warranty for long-term reliability and project confidence.
Specifications
- Lumen Output: 17,495
- Wattage: 130W (129.7W at 120V)
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: ≥80
- Beam Angle: 105°
- Efficacy: 134.4 lm/W
- Rated Life (L70): 100,000 hours
- Power Factor: >0.9
- Dimming: 0-10V to 10%
- Operating Temperature: -40°C to 50°C (-40°F to 122°F)
- Mounting: 3/4″ NPT steel hook standard
Common Uses
Ideal for warehouses, manufacturing facilities, gymnasiums, big-box retail, and auto showrooms where high lumen output, efficiency, and dependable long-life operation are essential.
