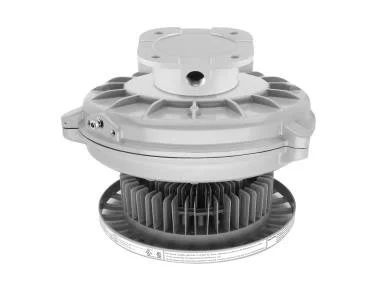

The MaxLite HLR Series is a rugged hazardous location high bay designed for demanding industrial and marine environments. Built for Class I Division 2 and Class II Division 2 applications, this fixture combines high output, long life, and durable construction for reliable operation in harsh areas.
Key Features and Benefits
- Certified for hazardous locations including Class I Div 2 (Groups A, B, C, D) and Class II Div 2 (Groups F, G) for safer deployment in volatile environments
- High-performance LED output with wide 120° distribution helps replace traditional 175W-250W HID fixtures
- Durable marine-grade build with copper-free die-cast aluminum housing, tempered glass lens, and stainless steel hardware
- IP66-rated enclosure supports dependable indoor and outdoor use in wet and dusty conditions
- Backed by a 5-year warranty and tested to LM-79/LM-80 standards for long-term confidence
Specifications
- Lumen Output: 8350
- Wattage: 77W input power (80W nominal)
- Voltage: 120-277V
- Color Temperature: 5000K
- CRI: ≥74
- Efficacy: 110 lm/W
- Rated Life (L70): 65000 hours
- Power Factor: >0.90
- Distribution: 120° wide
- Operating Temperature: -13°F to 122°F (-25°C to 50°C)
- Lens: Tempered Glass 3.2T (Clear)
- Weight: 14.3 lbs
Common Uses
Ideal for oil and gas facilities, chemical processing plants, manufacturing areas, wastewater sites, marine locations, and other hazardous indoor or outdoor spaces where flammable vapors or gases may be present.
