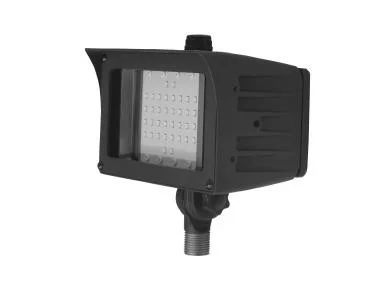

The MaxLite FloodMax FMS series delivers dependable outdoor flood illumination in a compact, value-driven design. This 30W configuration is built for broad-area coverage and includes integrated photocontrol functionality for added energy savings. As part of MaxLite’s FloodMax lineup, it combines durable construction, strong efficacy, and long-life LED performance for commercial exterior projects.
Key Features and Benefits
- Integrated button photocell with removable cap enables dusk-to-dawn control right out of the box
- Wide NEMA 7×7 optics provide expansive light spread for general area and facade applications
- Rugged die-cast aluminum body with corrosion-resistant powder coat supports long-term outdoor use
- IP65 wet-location design and IK08 impact performance enhance reliability in demanding environments
- DLC Premium qualified with cUL Listed and FCC compliance for utility rebate and code confidence
- Backed by a 10-year manufacturer warranty for long-term peace of mind
Specifications
- Lumen Output: 3400-3700
- Wattage: 29.5W
- Input Voltage: 120-277V
- Color Temperature: 5000K
- CRI: >70
- Efficacy: 115 lm/W
- Distribution: Wide 7×7 (137°-148° field angle)
- Power Factor: >0.90
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Mounting: 1/2″ threaded knuckle
- Housing Material: Die-cast aluminum
- Lens Material: Tempered glass
- Ingress Protection: IP65
- Weight: 10.5 lbs
Common Uses
Ideal for building facades, landscape accents, signage lighting, parking perimeters, and general outdoor area lighting in commercial and industrial settings.
