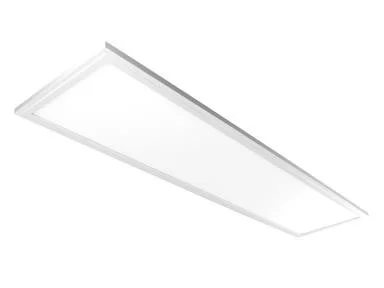

The MaxLite FlatMax MLFP Series G2 is a slim, edge-lit LED panel designed to modernize fluorescent troffers in commercial interiors. Built for dependable performance and visual comfort, this 1’x4′ model provides uniform, shadow-free illumination for demanding daily operation. As part of MaxLite’s core panel lineup, it combines energy savings, controls compatibility, and long service life.
Key Features and Benefits
- Edge-lit optical design delivers smooth, even light with reduced glare and minimal shadowing.
- 0-10V dimming support enables easy integration with common lighting controls and energy strategies.
- IC-rated construction allows direct contact with insulation for flexible ceiling installations.
- Long 50,000-hour L70 life helps reduce maintenance cycles and replacement costs.
- Certified for safety and compliance with cUL Listed and FCC qualifications, plus RoHS-compliant material design.
- Backed by a 10-year limited warranty for long-term project confidence.
Specifications
- Lumen Output: 2420
- Wattage: 18.9W
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: ≥80
- Efficacy: 128 lm/W
- Power Factor: ≥0.99
- Rated Life (L70): 50000 hours
- Operating Temperature: -4°F to 104°F
- Dimensions: 47.7″ x 11.9″ x 2.2″
- Mounting: Standard T-bar/grid drop ceiling
- Environment: Indoor damp location
Common Uses
Ideal for offices, schools, healthcare facilities, hospitality spaces, and other commercial interiors requiring efficient, low-profile lay-in ceiling lighting with dimming control capability.
