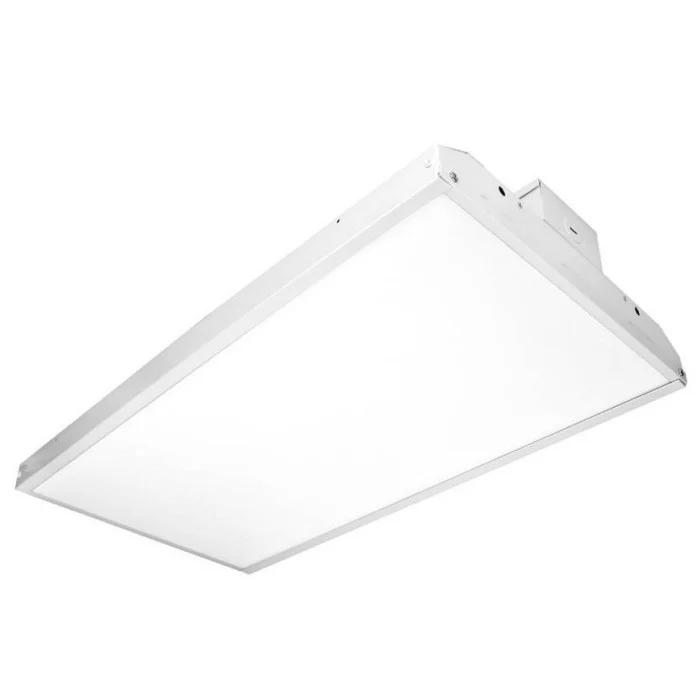

The MaxLite BLHE Economic Linear High Bay Gen 3 is a cost-effective, high-performance fixture designed for demanding commercial and industrial interiors. As part of MaxLite’s ECO Series, it combines strong lumen output, dependable controls compatibility, and flexible mounting for modern high-ceiling applications.
Key Features and Benefits
- High-output performance delivers up to 23,120 lumens to support large open areas with fewer fixtures.
- 0-10V dimming capability down to 10% helps reduce energy use and supports lighting control strategies.
- DLC Premium qualified design supports rebate opportunities and high efficacy project goals.
- Built for long-term reliability with 100,000-hour L70 life and a 10-year limited warranty.
- Damp-location suitability and broad operating range make it ideal for challenging indoor environments.
- Includes V-hook and 40″ knotted chain for straightforward suspended installation.
Specifications
- Wattage: 170W
- Lumen Output: 22,950-23,120
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: ≥80
- Efficacy: 141-142 lm/W
- Power Factor: ≥0.9
- Dimming: 0-10V
- Operating Temperature: -4°F to 122°F
- Lens Material: PMMA (Polymethylmethacrylate)
- Housing: Galvanized steel with white electrostatic powder coat finish
- Dimensions: 24″ L x 17.4″ W x 3.37″ H
Common Uses
Ideal for warehouses, distribution centers, manufacturing facilities, gymnasiums, and big-box retail spaces requiring efficient, high-lumen general illumination in damp-rated indoor environments.
