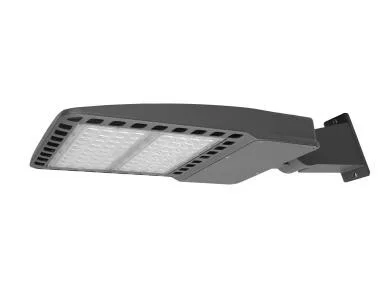

The MaxLite ARE High Efficiency Area Fixture is a high-performance outdoor luminaire designed for demanding commercial and municipal applications. As part of MaxLite’s ARE series, it delivers strong lumen output, robust construction, and flexible mounting for reliable area illumination. This 150W configuration is built for long-term energy savings and dependable operation in harsh environments.
Key Features and Benefits
- High-output LED performance delivering up to 23,800 lumens for broad site coverage
- 0-10V dimming with high-end trim support for improved energy control and lighting customization
- Durable die-cast aluminum body with corrosion-resistant powder coat for outdoor longevity
- IP65-rated construction with impact-resistant, UV-stabilized polycarbonate lens for weather resistance
- Certified for code and utility program confidence with cETLus, FCC, Title 24 compliance, and DLC Premium listing
- Backed by a 10-year warranty for reduced maintenance risk and lifecycle cost
Specifications
- Lumen Output: 22600-23800
- Wattage: 150W
- Voltage: 277-480V
- Color Temperature: 4000K
- CRI: 70
- Distribution Type: Type III
- BUG Rating: B3-U0-G3
- Efficacy (lm/W): 151-162
- Power Factor: 0.90
- Dimming Type: 0-10V
- Max Ambient Temperature: 104°F (40°C)
- Mounting: Flexible Arm (0°-78°)
Common Uses
Ideal for parking lots, roadways, campuses, auto dealerships, industrial yards, and perimeter security lighting where high efficacy, reliable outdoor performance, and controlled distribution are required.
