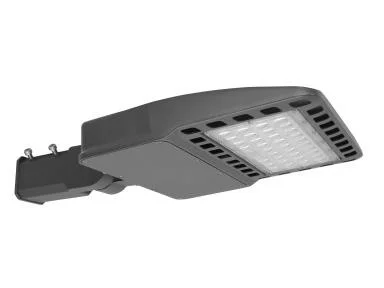

The MaxLite ARE High Efficiency Area Fixture is a performance-driven outdoor luminaire designed for demanding commercial and municipal applications. As part of MaxLite’s ARE series, this 100W model combines high lumen output, robust construction, and flexible mounting for reliable area illumination.
Key Features and Benefits
- Delivers high-output illumination up to 16,600 lumens to replace legacy HID systems up to 1,000W.
- Built for harsh outdoor environments with IP65 protection and corrosion-resistant die-cast aluminum housing.
- Supports advanced lighting control strategies with 0-10V dimming and controls-base compatibility for photocell and motion sensor options.
- Backed by a 10-year warranty and certified for code-focused projects with cETLus, FCC, DLC Premium, and Title 24 compliance.
Specifications
- Lumen Output: 15,900-16,600
- Wattage: 100W
- Voltage: 277-480V
- Color Temperature: 4000K
- CRI: 70
- Distribution Type: Type III
- BUG Rating: B3-U0-G3
- Efficacy (lm/W): 151-162
- Power Factor: 0.90
- Dimming Type: 0-10V
- Max Ambient Temperature: 104°F (40°C)
- Mounting: Knuckle Slipfitter 2 3/8″ OD, 0°-90° range
- Housing Material: Die Cast Aluminum
- Lens Material: UV-stabilized Polycarbonate
- IP Rating: IP65
Common Uses
Ideal for parking lots, roadways, campuses, industrial yards, and perimeter security lighting where dependable output, wide-area coverage, and long-term durability are required.
