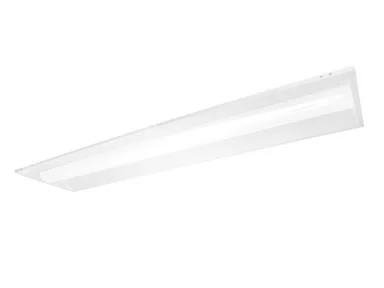

The MaxLite ArcMax MLVT14D16WCSCR is a control-ready 1’x4′ volumetric LED troffer designed to modernize fluorescent troffer applications in new construction and retrofit projects. As part of MaxLite’s ArcMax lineup, it combines field-selectable wattage and CCT flexibility with high visual comfort and long-life performance for demanding commercial spaces.
Key Features and Benefits
- Field-adjustable output lets you choose 16W, 20W, or 30W to match light levels and energy goals.
- Selectable 3500K, 4000K, or 5000K CCT supports varied tasks and interior design preferences.
- Controls Ready design enables fast plug-and-play integration with compatible c-Max control nodes.
- 0-10V dimming capability supports smooth light control and additional energy savings.
- Qualified for DLC Premium and listed cULus/FCC for confidence in performance and compliance.
- Backed by a 10-year warranty for long-term reliability in commercial installations.
Specifications
- Size: 1’x4′
- Lumen Output: 1968/2000/2000 lm (16W), 2460/2500/2500 lm (20W), 3690/3750/3750 lm (30W)
- Input Voltage: 120-277V, 50/60Hz
- CRI: ≥80
- L70 Rated Life: ≥100,000 hours
- Power Factor: >0.9
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Environment: Damp/Dry location, IC rated
Common Uses
Ideal for offices, schools, healthcare facilities, hospitality spaces, and retail interiors where uniform low-glare illumination, controllability, and long service life are priorities.
