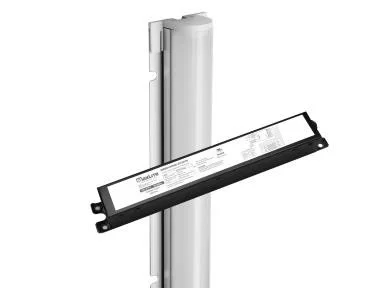

The Magnetic Retrofit Bar Kit (MRBK) installs into existing troffers without the need to enter the ceiling space, providing facility managers with a quick and cost-effective solution to upgrade outdated fluorescent lighting systems to high-efficiency LED lighting.
Key Features and Benefits
- Kit includes Driver, Linear Bar, and mounting hardware with no lamp socket needed
- Magnet on the back for easy installation
- UL 1598C Classified Retrofit Kits
- UL Class 2 Low Voltage System
- Long life of 50,000 hours
- Universal Input 120/277V
- Dimming: 0-10V, Dimming Range: 20%-100%
- c-Max Compatible
- Aluminum backing for excellent thermal dissipation
- Multi-Channel/Multi-output driver for 3 light levels in each kit
- Field installable Sensor and Emergency BBU available
Specifications
- Size: 4 ft
- Nominal Wattage: 18W
- Lumens Delivered: 2275
- Nominal Efficacy: 130 lm/W
- CRI: ≥80
- Color Temperature: 4000K
- L70 Lumen Maintenance: 50,000 hours
- Power Factor: ≥0.9
- Input Voltage: 120-277V
- Construction: Aluminum backing for heatsink with frosted lens
- Operating Temperature: -4°F to 104°F
- Humidity: 10-80% RH Non-Condensing
- Certifications: DLC Premium, cULus Classified, FCC, UL 1598C Classified Retrofit Kits, UL Class 2 Low Voltage System
- Material Usage: RoHS Compliant, No Mercury
- Environment: Suitable for dry locations
- Warranty: 5-year warranty
Common Uses
Ideal for office spaces, educational facilities, and commercial buildings where efficient and quick lighting upgrades are needed.
