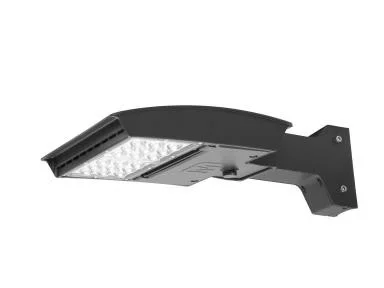

M Series, 55W, 120-277V, Type 5 Low Glare, 3000/4000/5000K, Dark Bronze, Straight Arm, C-Max Compatible

The M Series product family provides a slim, clean design with tremendous versatility for outdoor lighting applications. The standard product is CCT selectable, enabling the customer to choose from 3 color temperatures in a single product. It also includes a controls ready receptacle that allows the customer to add either basic controls, such as an on/off photocell or motion sensor, or network control nodes for grouping and more sophisticated control functions.

Key Features and Benefits

• Versatile outdoor lighting solution for area, flood, and wall applications.
• Selectable color temperatures: 3000K, 4000K, 5000K.
• Controls ready receptacle for basic and network control options.
• Die-cast aluminum housing with corrosion-resistant polyester powder coat finish.
• UV stabilized polycarbonate lens.
• TAA compliant.

Specifications

• Wattage: 55W
• Voltage: 120-277V
• Lumens: 6,890 – 7,290 (Type 5 Low Glare)
• Color Temperature: Selectable 3000K/4000K/5000K
• CRI: ≥70 (80 available as a special)
• Dimming: 0-10V and High-end trim (with controls)
• Power Factor: ≥0.90
• Operating Temperature: -40°F to 104°F (-40°C to 40°C)
• Listings: DLC Premium, FCC, cULus, RoHS, T24 Compliant
• Environment: Wet listed, IP66
• Warranty: 10 Years

Common Uses

Ideal for area lighting, flood lighting, and wall lighting in outdoor settings such as parking lots, building perimeters, and general site lighting.
