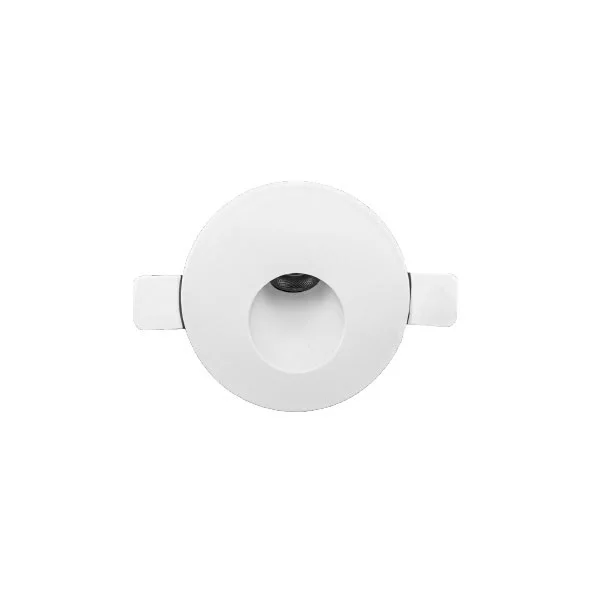

The Lum-Tech Modera-CSL Eclipse Steplight (LTG-48200) is a compact round clip-in fixture designed for clean, low-profile architectural step and pathway lighting. As part of Lum-Tech’s Eclipse lineup, it combines selectable color temperature, high color quality, and code-friendly ratings for dependable interior and exterior-adjacent applications.
Key Features and Benefits
- Selectable 5CCT output lets you tune the light color from warm to cool to match project aesthetics.
- Smooth Triac dimming down to 5% supports comfortable nighttime wayfinding and energy savings.
- High 90 CRI light quality improves visual clarity on stairs, corridors, and transition areas.
- Title 24 and JA8 compliant design helps meet modern residential and light-commercial energy codes.
- Backed by a 3-year warranty and 50,000-hour life for long-term reliability.
- IC-rated and plenum-rated construction supports flexible installation in rated ceiling/wall cavities.
Specifications
- Lumen Output: 350
- Wattage: 5W
- Voltage: 120V
- Color Temperature: 2700K|3000K|3500K|4100K|5000K
- Beam Angle: 36°
- CRI: 90
- Cut Out: 2.36″

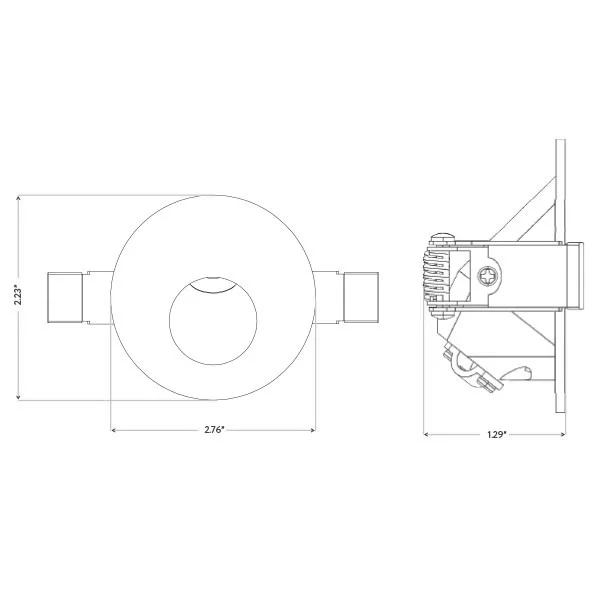

- Overall Dimensions (OD): 2.23″ x 2.76″
- Depth: 1.29″
- Dimming: Triac
- Plenum Rating: FT6
Common Uses
Ideal for stair risers, hallway transitions, corridor base lighting, and low-level wayfinding in multifamily, hospitality, and residential projects where compact form factor and selectable CCT are important.
