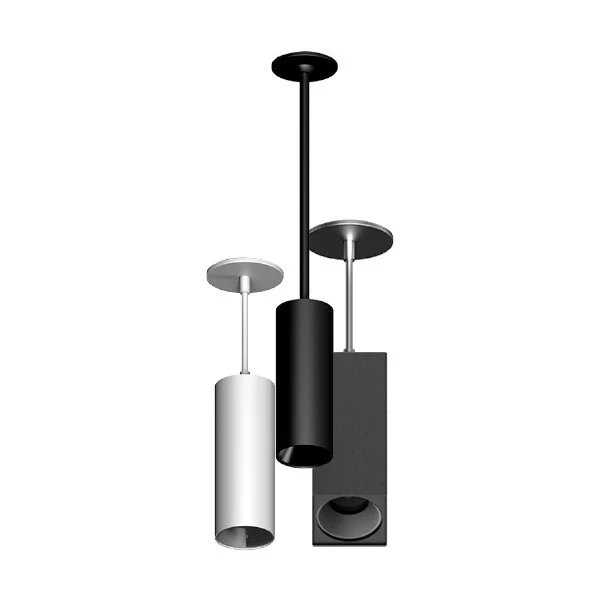

The Lum-Tech LTMACD02 Series is a premium indoor architectural cylinder downlight designed for flexible, design-forward illumination in commercial and residential spaces. This 3″ configuration combines selectable output, tunable color options, and interchangeable optics to support a wide range of lighting goals. As part of Lum-Tech’s modular cylinder lineup, it delivers high visual comfort and dependable long-life performance.
Key Features and Benefits
- Field-selectable wattage and CCT let you fine-tune light levels and tone on site for faster project adaptation.
- High 90 CRI light quality improves color accuracy for hospitality, retail, and upscale residential interiors.
- Stepless adjustable beam (18°-50°) with preset detents supports both focused accenting and broader ambient coverage.
- Modular lens and baffle ecosystem enables customized visual effects, glare control, and wall-wash performance.
- UL and cUL listed for damp locations and Energy Star certified for trusted code-friendly installation.
- Backed by a 5-year limited warranty for long-term confidence.
Specifications
- Size: 3″ diameter cylinder
- Input Voltage: 120-277V
- Wattage Settings: 15W | 11W | 8W
- Lumen Output: 760-1500 lm (depending on CCT and setting)
- Color Temperatures: 2700K | 3000K | 3500K | 4000K | 5000K (DDK selectable)
- CRI: 90
- Dimming: 0-10V | Triac | ELV, down to 1%
- Beam Angle: Adjustable 18°-50° with 18°/24°/36°/50° detents
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -20°C to 40°C (-4°F to 104°F)
- Rated Life: L70 ≥ 100,000 hours
- Mounting Options: Surface | Cord Pendant | Stem Pendant | Adjustable Surface
- Finish Options: Black | White | Silver Gray | custom RAL available
Common Uses
Ideal for lobbies, corridors, retail displays, hospitality venues, galleries, luxury residences, and other interior architectural environments requiring precise beam control and refined cylinder aesthetics.
