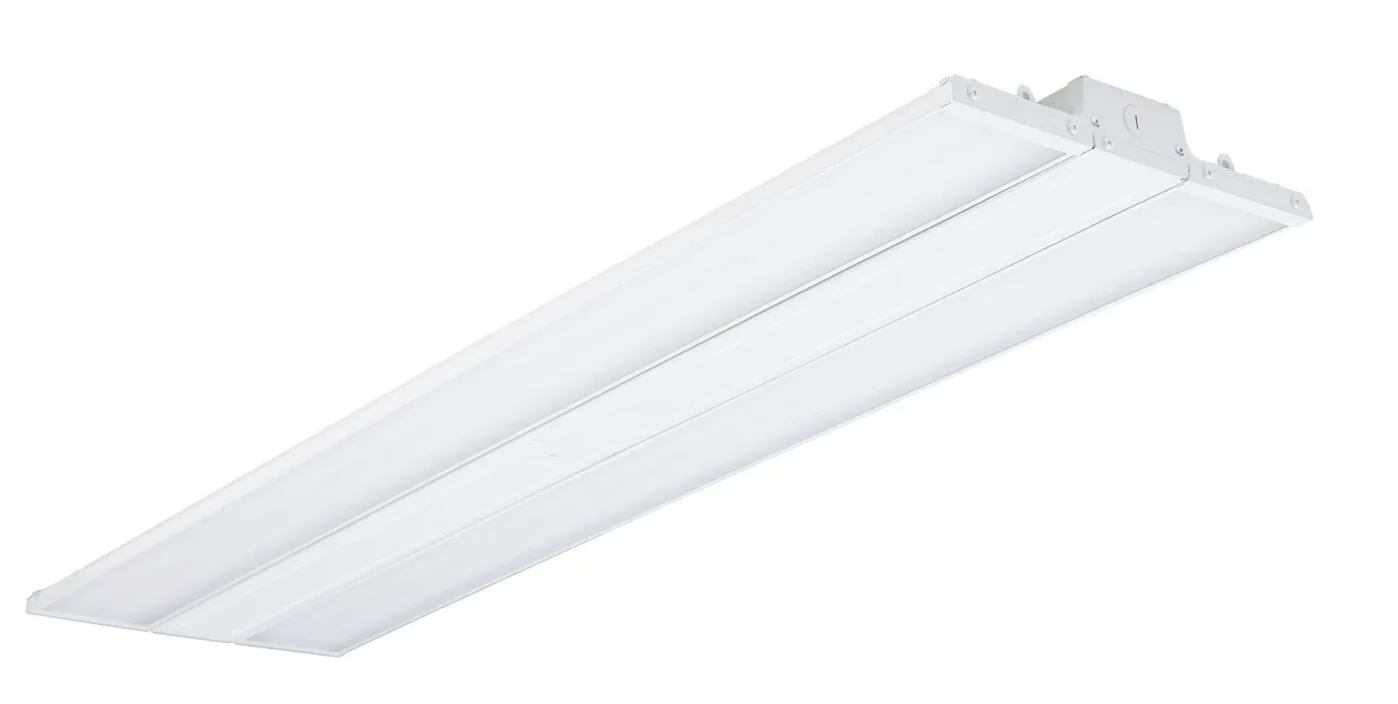

The Lum-Tech LT-HB6 is a power- and CCT-tunable LED linear high bay designed for demanding commercial and industrial environments. As part of Lum-Tech’s high-performance high bay lineup, it combines compact construction, high efficacy, and flexible field adjustability to simplify stocking and installation. This fixture is built to deliver reliable illumination in large open areas while supporting modern control strategies.
Key Features and Benefits
- Dual-selectable output lets installers choose 180W, 200W, or 220W in the field for application-specific light levels.
- Selectable 4000K/5000K color temperature supports both neutral and cooler visual environments from one SKU.
- Prismatic frosted lens helps reduce glare and supports DLC Premium UGR performance targets.
- Compact, one-piece die-cast aluminum body improves thermal management and eases handling during installation.
- Pre-wired sensor base accepts optional screw-in microwave/daylight sensor for advanced occupancy-based control.
- Certified for quality and compliance with UL Listed, FCC, and DLC Premium credentials, backed by a 5-year warranty.
Specifications
- Wattage: 180W/200W/220W
- Voltage: 120-347V
- Color Temperature: 4000K/5000K
- Efficacy: 140 lm/W
- CRI: >80
- Power Factor: >0.95
- Beam Angle: 116.5° average
- Operating Temperature: -40°C to 55°C
- Dimming: 0-10V
- Dimensions: 18.11″ x 10.63″ x 2.17″
Common Uses
Ideal for warehouses, distribution centers, manufacturing facilities, gymnasiums, and other high-ceiling commercial or industrial interiors requiring efficient, tunable, and low-glare lighting.
