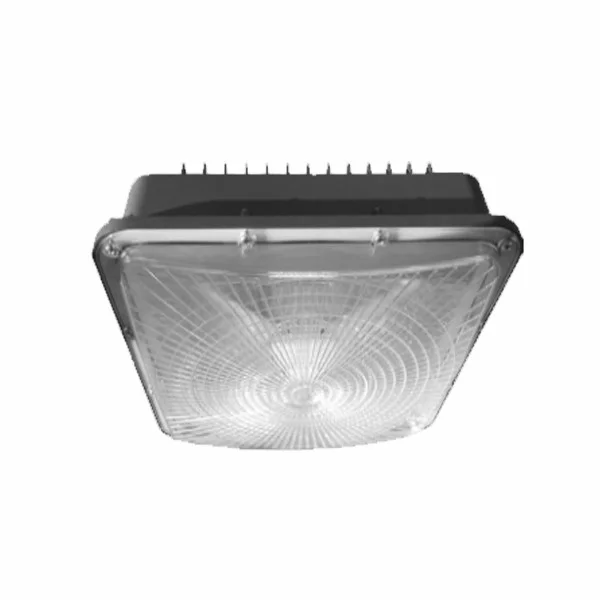

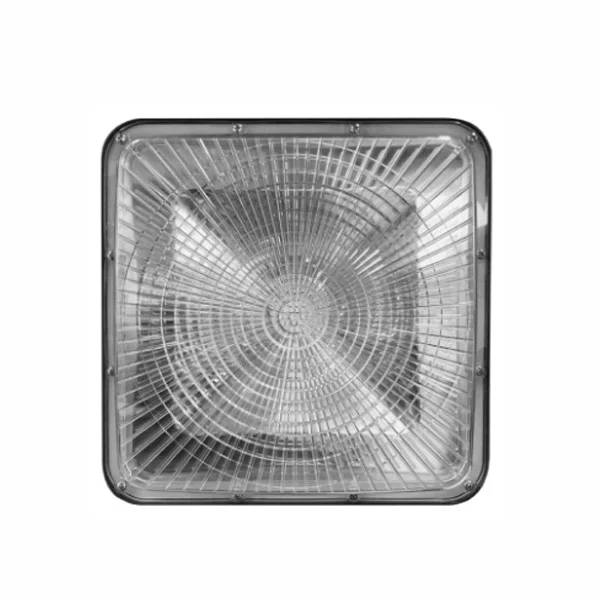

Altech’s Mammoth Series Low Bay Canopy, an upgrade from the Slim Series, has a 10-year wrap-around warranty.
APPLICATIONS
- Warehouse
- Parking Garages
- Low Ceilings
- Underpasses
- Hallways
- Tunnels
DETAILS
- IP Rating: IP67
- Materials: Die Cast Aluminum
- Lens: Polycarbonate
- LM70 Life: 100,000 hours
- Warranty: 10 Years
- CRI: 70+
- Certification: UL, DLC 4.3, FCC, CE, RoHS
- Driver Man.: YG
- Chip Man.: Philips
ELECTRICAL
- Power Factor: 0.99
- Frequency: 50/60 Hz
- Max THD: 15%
- Operating Temp.: -40°F to 130°F -40°C to 54°C
- Dimming: 1-10V
SERIES SUMMARY
| Model No. |
Input Wattage |
Lumen Output |
Lumen Efficiency |
| AE-L-LBMS-28 |
28W |
3,080 Lumens |
130 lm/w or 145lm/w |
| AE-L-LBMS-40 |
40W |
5,080 Lumens |
130 lm/w or 145lm/w |
| AE-L-LBMS-60 |
60W |
7,860 Lumens |
130 lm/w or 145lm/w |
| AE-L-LBMS-90 |
90W |
11,970 Lumens |
130 lm/w or 145lm/w |
