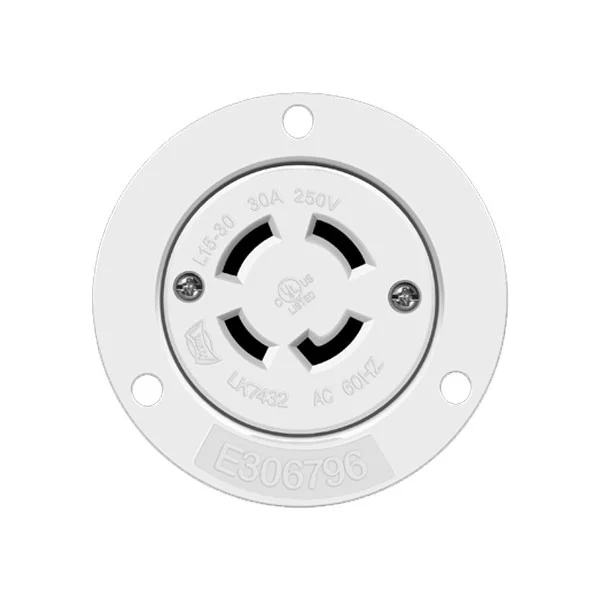

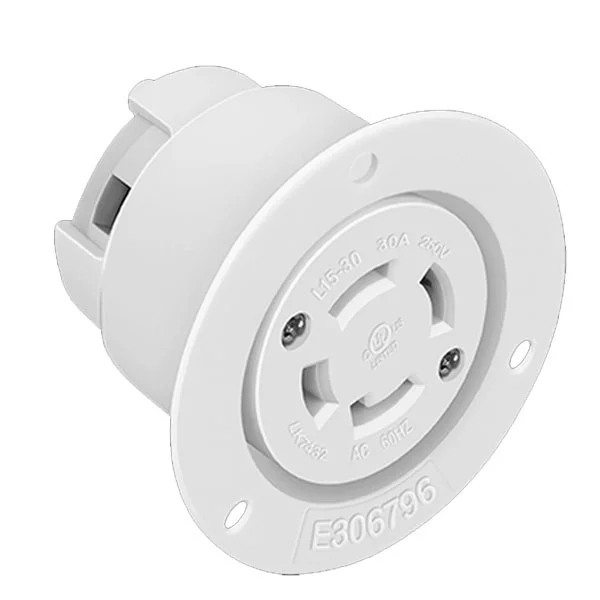

Locking Flanged Outlet, 30A, L15-30RFO

Locking flanged outlet, 30A, L15-30RFO, flammability UL94, V2 rating, reinforced thermoplastic polyester, ratings and NEMA identification are permanently marked on device.
Minimum order qty. of 10 pcs.
DESCRIPTION
Enerlites’s locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection. The nylon housing of insulated design shields exposed metal parts on hand-held side. The industrial strength contacts resist heat rise, provide excellent conductivity. The internal dust shield design keeps terminals free of contaminants.
FEATURES

Flammability UL94, V2 Rating
High Impact-Resistant Chemical-Resistant Nylon
Reinforced Thermoplastic Polyester
Ratings and NEMA identification are permanently marked on device

SPECIFICATIONS

Type: Locking Flanged Outlet
Rating: 30Amp, 250Volt
Wiring Scheme: 3 Pole, 4 Wire Grounding
NEMA Configuration: L15-30C
Max Working Voltage: 250VAC
Termination: #10 AWG Solid Copper Wire
