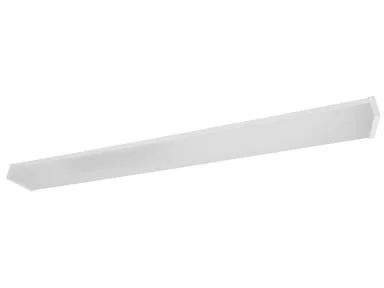

A cost-effective utility wrap with tremendous flexibility, the UE Series is both wattage and CCT selectable providing 9 options in one SKU and also offers an emergency battery backup option. This durable linear fixture delivers long lasting illumination and critical energy savings in locations where lights are on 24/7, such as stairwells, parking garages and utility areas.
Key Features and Benefits
- CCT and Wattage selectable (9 possible combinations with each fixture)
- 0-10V dimming standard
- CRI: ≥ 80
- Universal voltage 120-277V
- L70 lumen maintenance of 50,000 hours
- Default setting for WCS models is set to lower wattage and 4000K
- UL listed – Suitable for damp locations
Specifications
- Size: 4ft
- Nominal Wattage: 26W, 34W, 46W
- Lumens Delivered: 3800, 4800, 6200
- Nominal Efficacy: 130 lm/W
- Color Temperature: 3500K, 4000K, 5000K
- Input Voltage: 120-277V AC, 50/60Hz
- Power Factor: ≥ 0.9
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Certifications: cULus listed, FCC, RoHS Compliant
- Warranty: 5 Years
Common Uses
Ideal for stairwells, parking garages, and utility areas where lights are on continuously.
