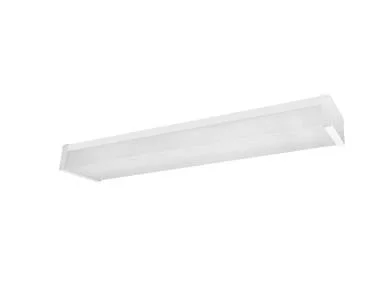

A cost-effective utility wrap with tremendous flexibility, the UE Series is both wattage and CCT selectable providing 9 options in one SKU and also offers an emergency battery backup option. This durable linear fixture delivers long lasting illumination and critical energy savings in locations where lights are on 24/7, such as stairwells, parking garages and utility areas.
Key Features and Benefits
- CCT and Wattage selectable (9 possible combinations with each fixture)
- 0-10V dimming standard
- CRI: ≥ 80
- Universal voltage 120-277V
- L70 lumen maintenance of 50,000 hours
- Default setting for WCS models is set to lower wattage and 4000K
- UL listed – Suitable for damp locations
Specifications
- Size: 2ft
- Nominal Wattage: 20W, 25W, 30W
- Lumens Delivered: 2800, 3500, 4200
- Color Temperature: 3500K, 4000K, 5000K
- Input Voltage: 120-277V
- CRI: ≥ 80
- Calculated L70 Lumen Maintenance: ≥ 50,000 hours
- Dimming Technology: 0-10V
- Power Factor: ≥ 0.9
- Certifications: cULus listed, FCC, Rohs Compliant
- Environment: Suitable for damp locations
- Warranty: 5 Years
Common Uses
Ideal for stairwells, parking garages, utility areas, and other locations where lights are on 24/7.
