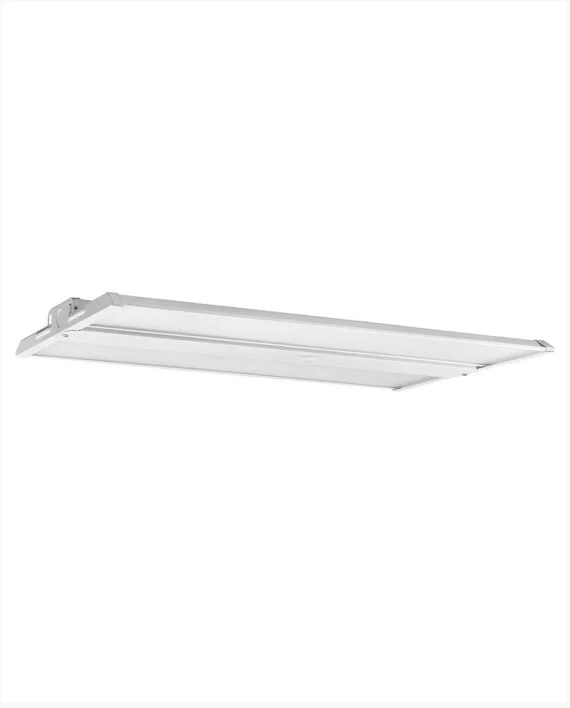

The Cyber Tech Lighting HL220S/CCT Linear LED High Bay is a versatile fixture designed for demanding commercial and industrial high bay applications. As part of the manufacturer’s adjustable-output high bay lineup, it combines selectable wattage and CCT in one streamlined housing to simplify stocking and installation.
Key Features and Benefits
- Selectable performance with 220W, 200W, or 180W settings to match light levels and energy goals.
- Dual CCT flexibility (4000K/5000K) supports both neutral and daylight visual environments.
- Smooth 0-10V dimming down to 10% enables better control and potential energy savings.
- Durable non-corrosive powder-coated steel body with damp-location suitability for long-term reliability.
- Includes steel hanging cable for straightforward suspended mounting.
- Backed by a 5-year limited warranty and UL certification for confidence in commercial projects.
Specifications
- Input Voltage: 120-277VAC
- Input Power: 220W | 200W | 180W
- Lumen Output: 30800 | 28000 | 25200
- Color Temperature: 4000K | 5000K
- CRI: ≥80
- Frequency: 60Hz
- Power Factor: >0.99
- THD: <20%
- Rated Life: 50,000 hours
- Operating Temperature: -40°C to 40°C
- Beam Angle: 90.1° (average)
- Dimensions: 24″ length
Common Uses
Ideal for warehouses, manufacturing areas, gymnasiums, distribution centers, and other commercial or industrial interiors requiring efficient, high-output overhead illumination.
