Linear Dimming Control Module, 2A, Universal Voltage, 220 Designator

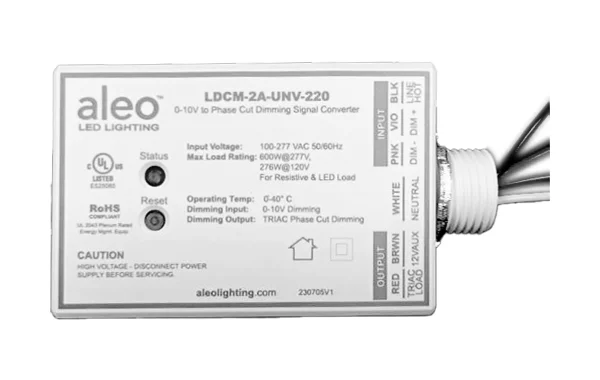

The AleoBlue Linear Dimming Control Module (LDCM) is a plenum-rated module designed to convert 0-10V dimming signals to forward/reverse phase dimmed outputs for enhanced lighting control. Capable of handling up to 600W with a 277V load and 276W on a 120V load, this module is ideal for efficient lighting management.

Key Features and Benefits

• Forward and reverse phase dimming capabilities
• Simple installation with direct J-Box mounting
• Compatible with both 120V and 277V systems
• Built-in 12V auxiliary power supply
• Plenum rated for safety and compliance
• One LDCM per fixture run

Specifications

• Power Rating: 276W MAX @110-120V, 600W MAX @277V
• Operating Voltage: 100V-277V
• Operating Hertz: 50/60Hz
• Aux Power: 12V, 80mA MAX
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Relative Humidity: 8%-80%

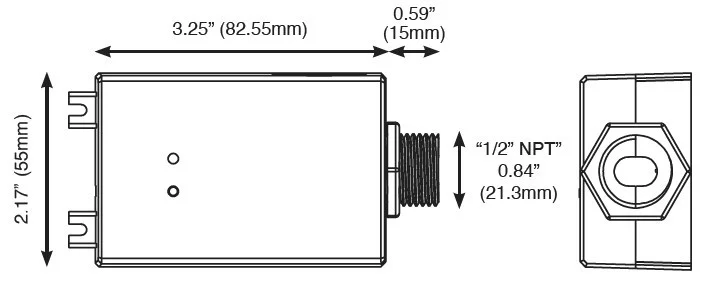

• Dimensions: 3.2”L x 2.2”W x 1.2”H (82.5mm x 55mm x 31mm)
• Color: White

Common Uses

Ideal for indoor settings such as open offices, individual offices, conference rooms, classrooms, retail stores, hospitals, and lobbies.
