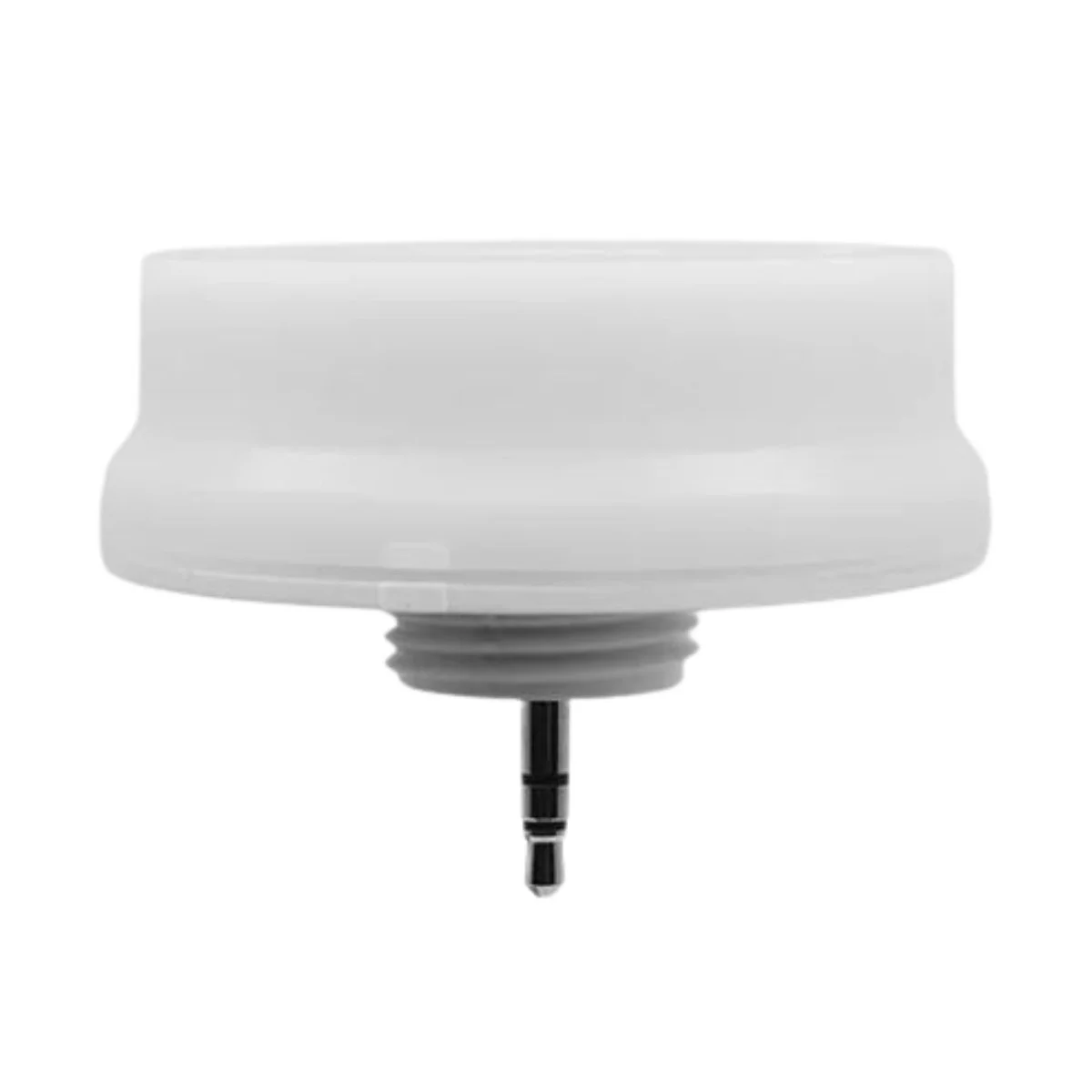

The LEDone LOC-ACY-S-PC-01-G1 is a compact photocell and daylight harvesting sensor designed to optimize lighting performance based on ambient light conditions. As part of LEDone’s control accessory lineup, it delivers reliable dusk/dawn switching and bi-level dimming for energy-conscious commercial lighting systems.
Key Features and Benefits
- Combines photocell and daylight harvesting modes in one control device for flexible lighting automation.
- Supports bi-level 0-10V dimming to reduce energy use while maintaining visual comfort.
- Fast 3-10 second response delay simplifies commissioning and functional testing.
- IP65-rated construction helps protect the sensor in demanding indoor and semi-outdoor installations.
- Ambient brightness learning via compatible remote enables customized daylight setpoints.
Specifications
- Input Voltage: 12V (10-15V range)
- Current Draw: >30mA
- Standby Power Consumption: <20mA
- Dimming Output: 0-10V
- Photocell Threshold Options: 2Lux | 10Lux
- Daylight Harvesting Threshold Options: 30Lux | 50Lux | 80Lux | 120Lux | 200Lux | 250Lux | 300Lux | 350Lux | 400Lux
- Operating Temperature: -20°C to +60°C (-4°F to 140°F)
- Storage Temperature: -40°C to +80°C (-40°F to 176°F)
- Humidity: 85% non-condensing
- Ingress Protection: IP65
Common Uses
Ideal for commercial and industrial LED fixtures requiring daylight-responsive dimming, including warehouses, parking structures, corridors, and utility spaces where automatic light-level adjustment and dusk/dawn control improve efficiency.
