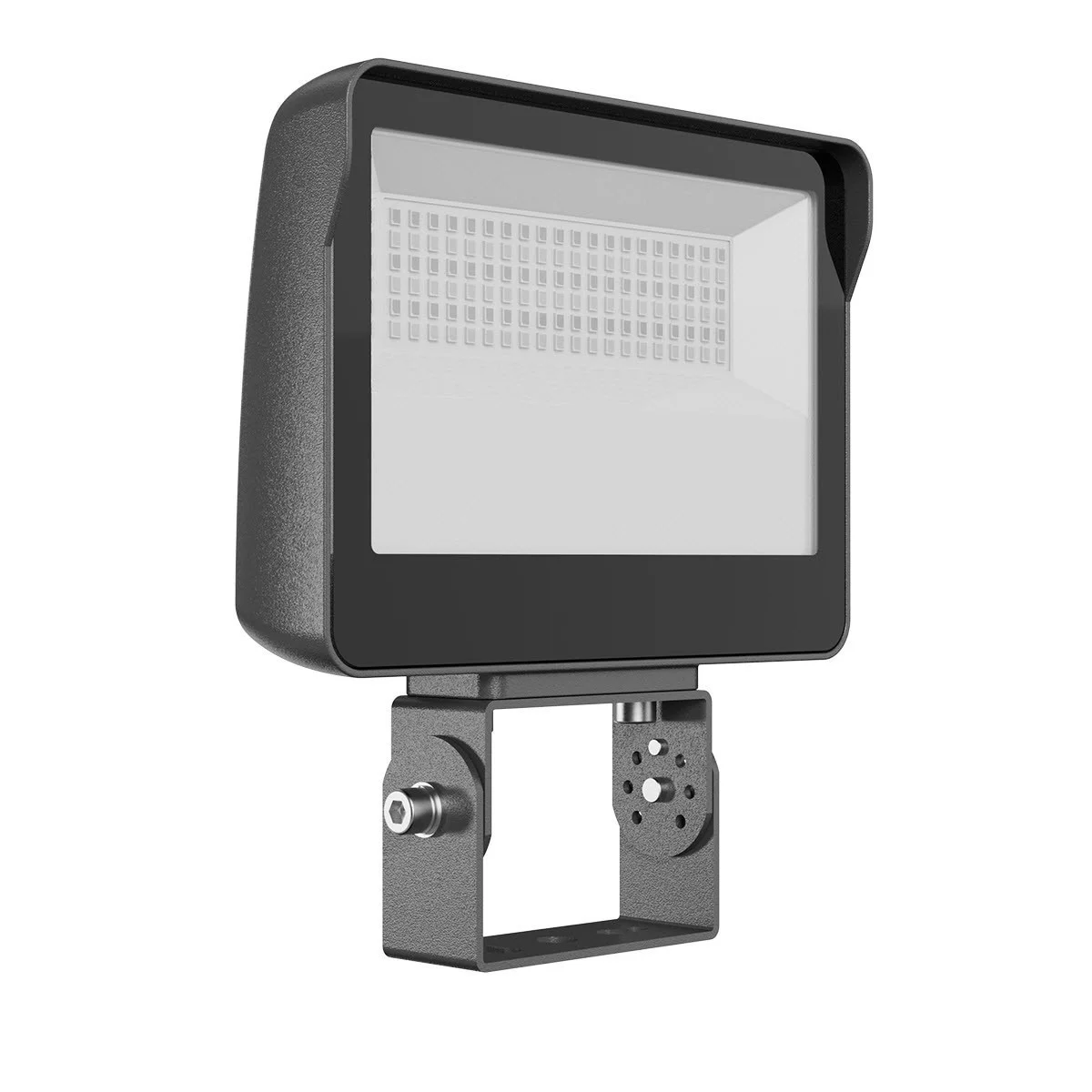

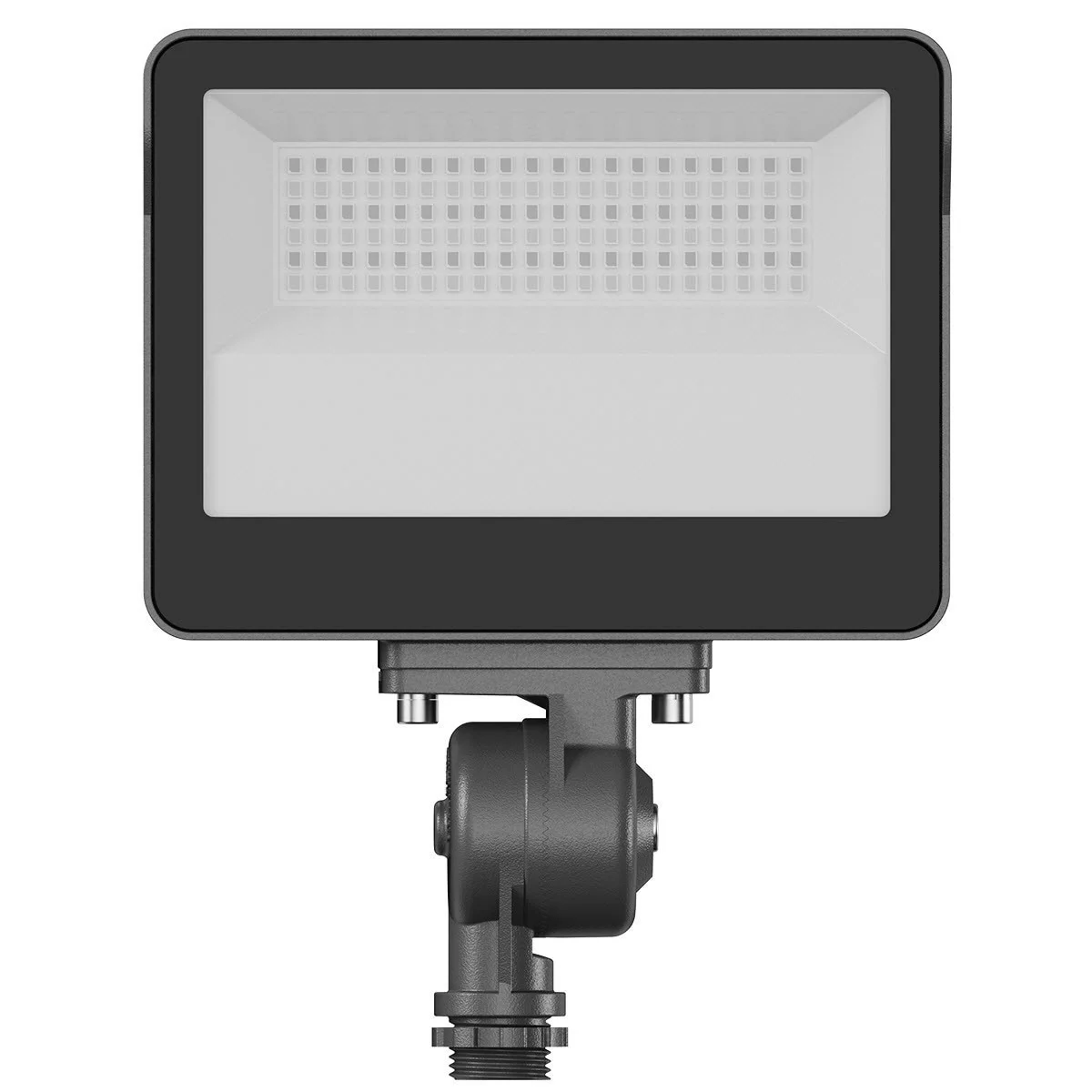

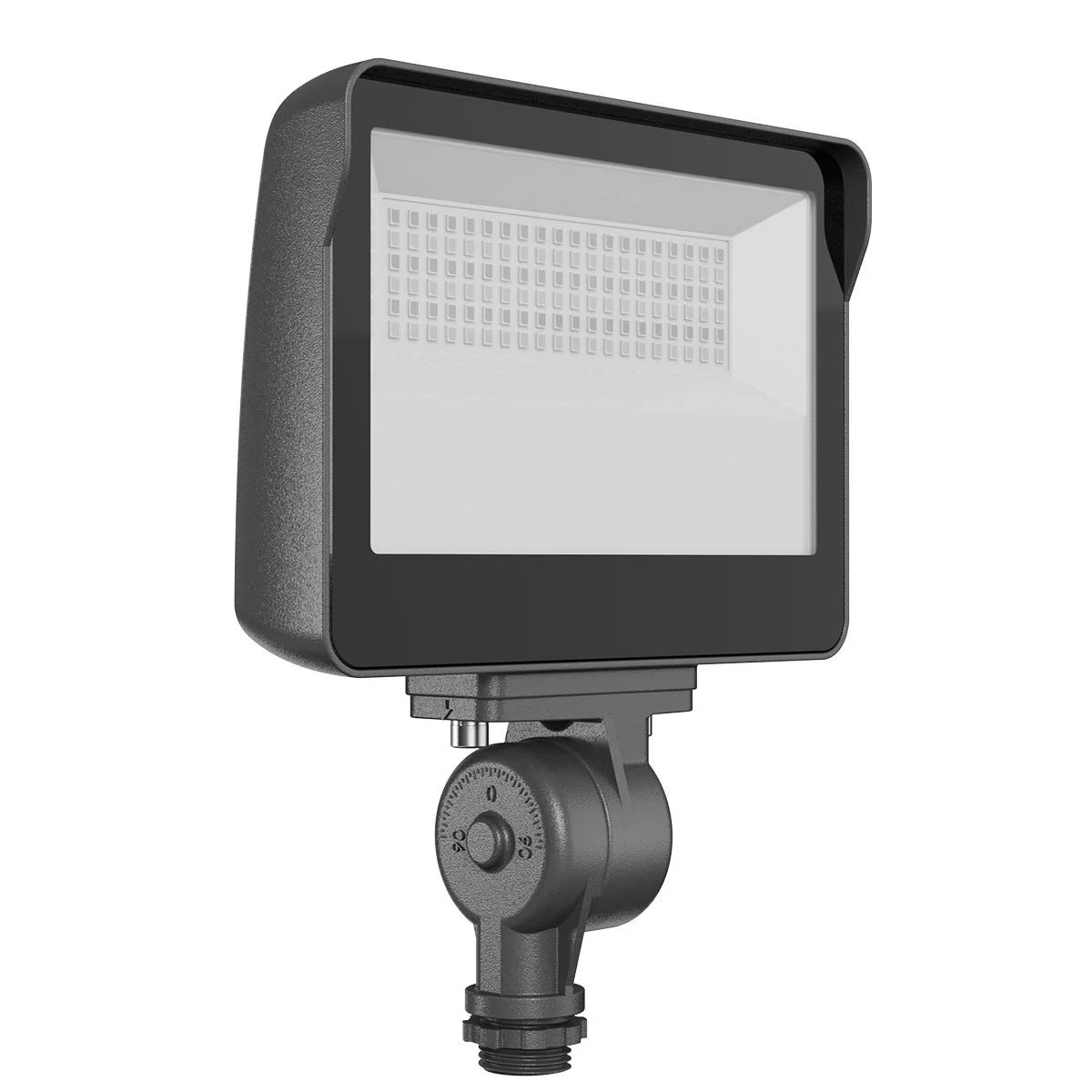

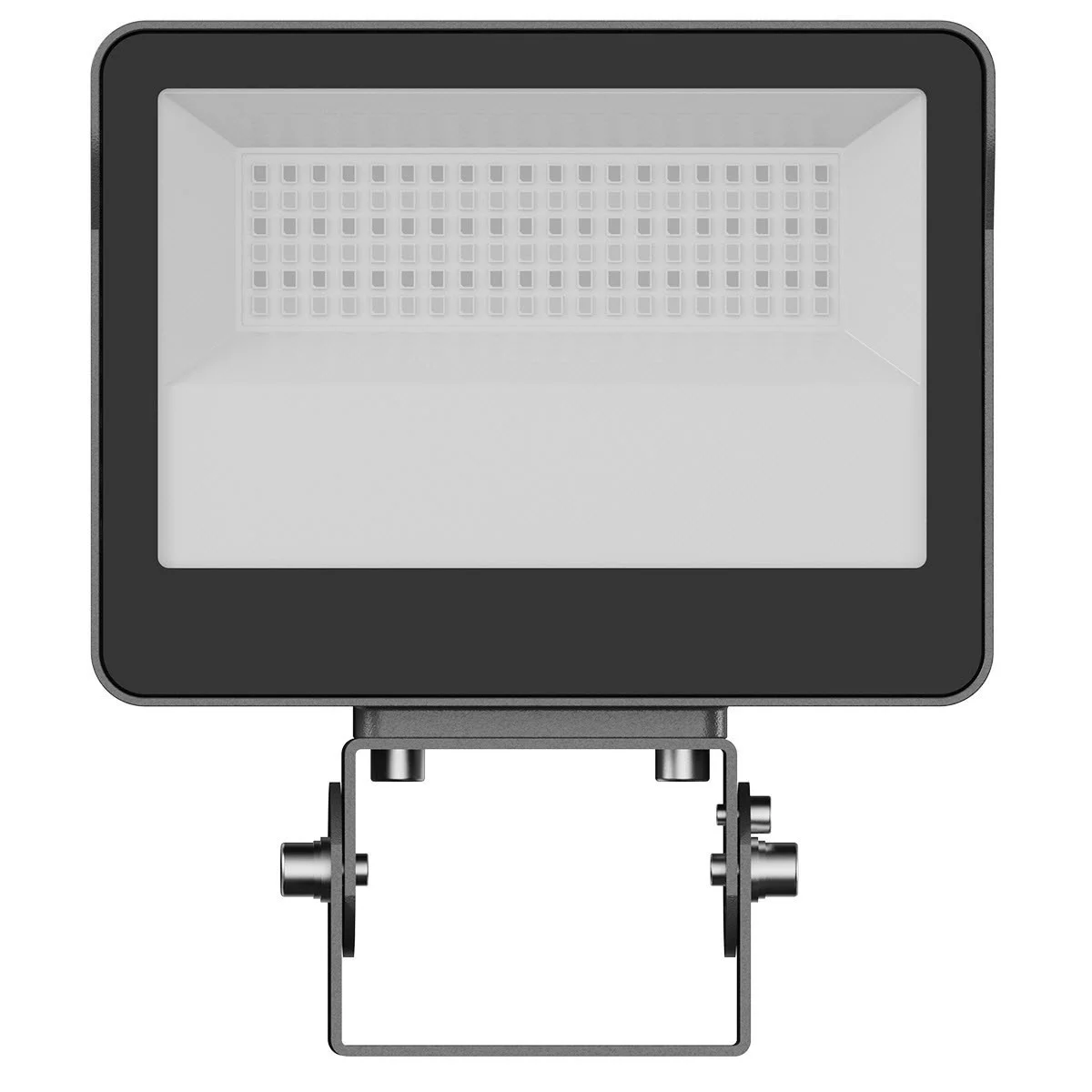

The LEDone LOC-FL Family Series flood light is a versatile outdoor fixture designed for dependable area and facade illumination. This configurable model combines multi-wattage and multi-CCT flexibility with a built-in photocell, making it a practical choice across changing site requirements. As part of LEDone’s commercial outdoor lineup, it delivers efficient performance and durable construction for long-term use.
Key Features and Benefits
- Field-selectable output with 15W, 25W, or 35W settings to match light levels without changing fixtures
- Selectable 3000K/4000K/5000K CCT for warm to daylight appearance tuning on site
- Integrated ON/OFF photocell helps automate operation and reduce unnecessary energy use
- IP65 weather-resistant design with tempered glass lens for reliable outdoor performance
- DLC Premium listed and UL certified for trusted commercial-grade compliance
- Backed by a 5-year limited warranty for added project confidence
Specifications
- Lumen Output: 2175/3625/5075
- Efficacy: 145 lm/W
- Input Voltage: 120-277V
- CRI: 80
- Power Factor: 0.9
- THD: 20%
- Dimming: 0-10V
- Rated Life: 50000 hours
- Operating Temperature: -40°C to 50°C
- Surge Protection: 6kV
- Optics: 7H x 7V beam pattern
- Housing: Aluminum with polyester powder-coated finish
- Lens: Tempered glass
- Light Source: Samsung LED chips
- Mounting: Knuckle mount or trunnion mount
- Net Weight: 2.2 lbs
Common Uses
Commonly used for parking lots, warehouses, factories, logistics centers, shopping centers, supermarkets, stadium perimeters, and auto dealership exteriors where durable, controllable flood lighting is required.
