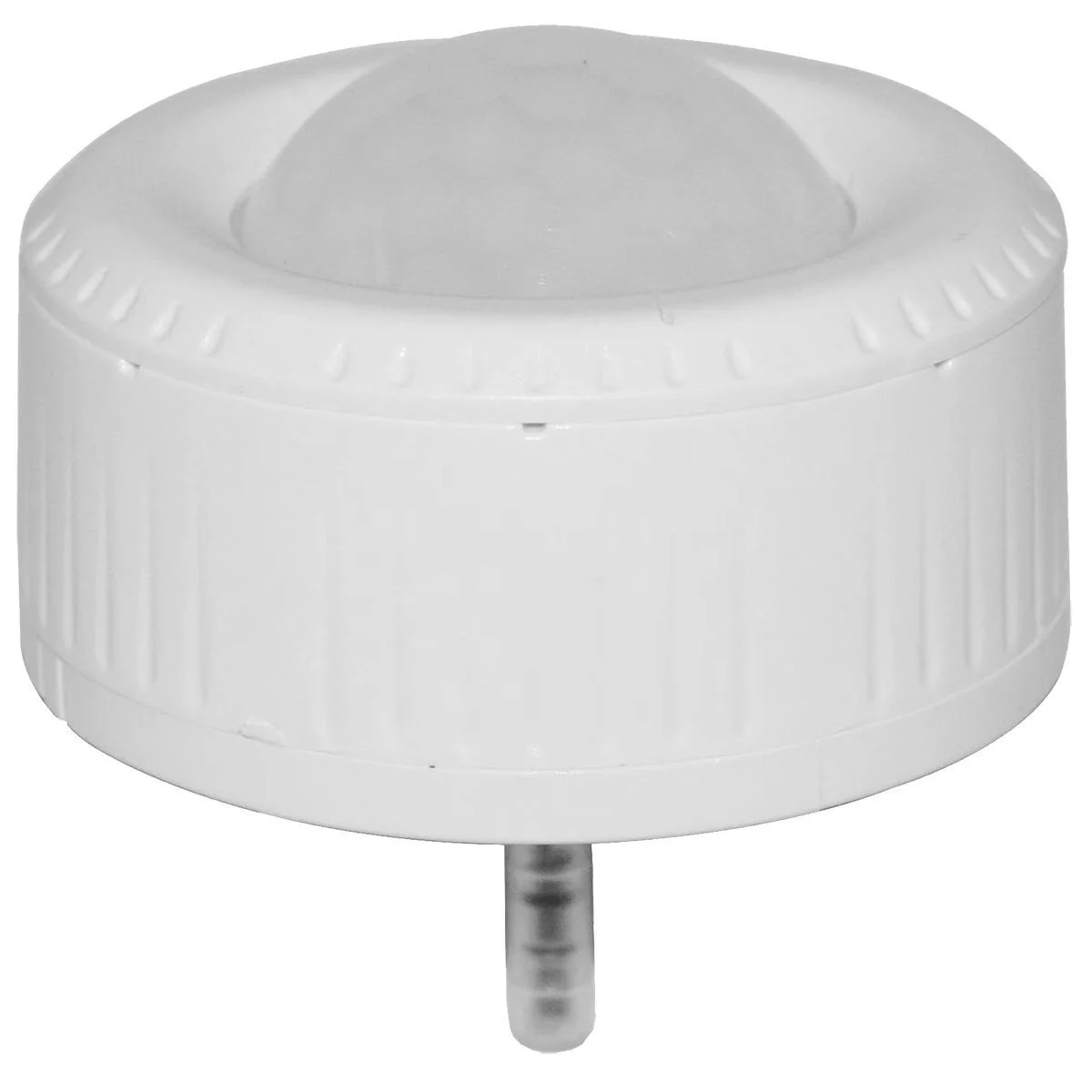

The LEDone LOC-ANT-6-4T is a bi-level PIR motion sensor designed to add intelligent control to outdoor LED luminaires. As part of LEDone’s control lineup, it enables motion- and daylight-responsive dimming to improve energy efficiency and site safety. Its compact form and remote programmability make it a practical upgrade for commercial and industrial lighting systems.
Key Features and Benefits
- Bi-level motion logic supports full output on occupancy and dimmed standby operation for reduced energy use.
- Flexible setup with adjustable sensitivity, hold times, and daylight thresholds to match site conditions.
- Compatible with 0-10V dimmable LED drivers and dimming ballasts for broad fixture integration.
- Built for demanding environments with wet-location suitability and cold-weather operation.
- Remote-control programmability streamlines commissioning and field adjustments.
Specifications
- Power Supply: 12-24V DC, >30mA
- Dim Control Output: 0-10V, max 25mA sinking current
- Detection Radius: 20%/50%/75%/100% (1-8m)
- Mounting Height: Max 40′ (12m)
- Remote Range: 50′ (15m) indoor, no backlight
- Time Setting: 10s/1min/5min/10min/15min/20min/30min/60min
- Light Control: 24H/10Lux/30Lux/50Lux
- IP Rating: IP65
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Common Uses
Ideal for outdoor wall packs, canopy lights, area fixtures, and other commercial LED luminaires requiring occupancy-based dimming and daylight harvesting in parking areas, walkways, building perimeters, and industrial sites.
