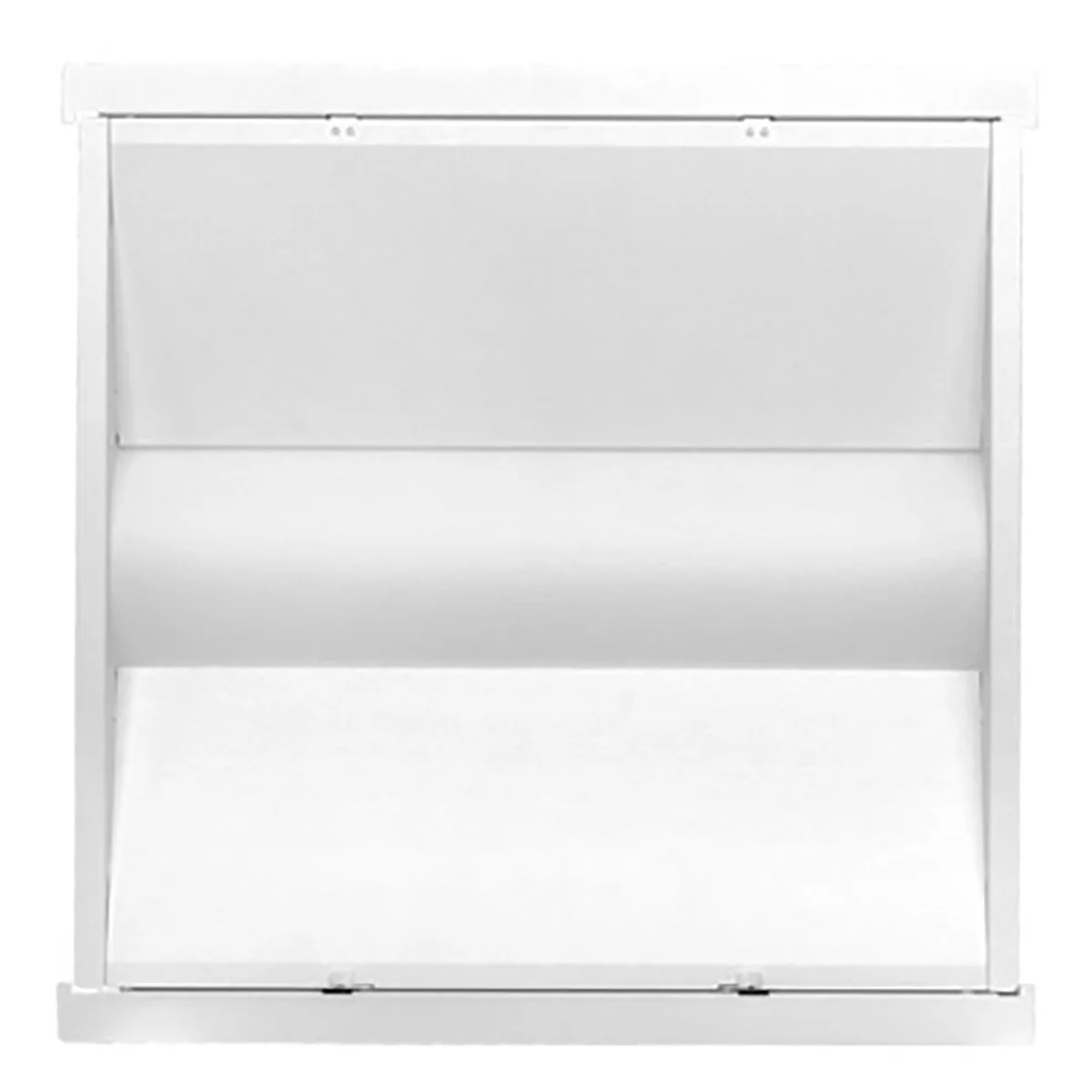

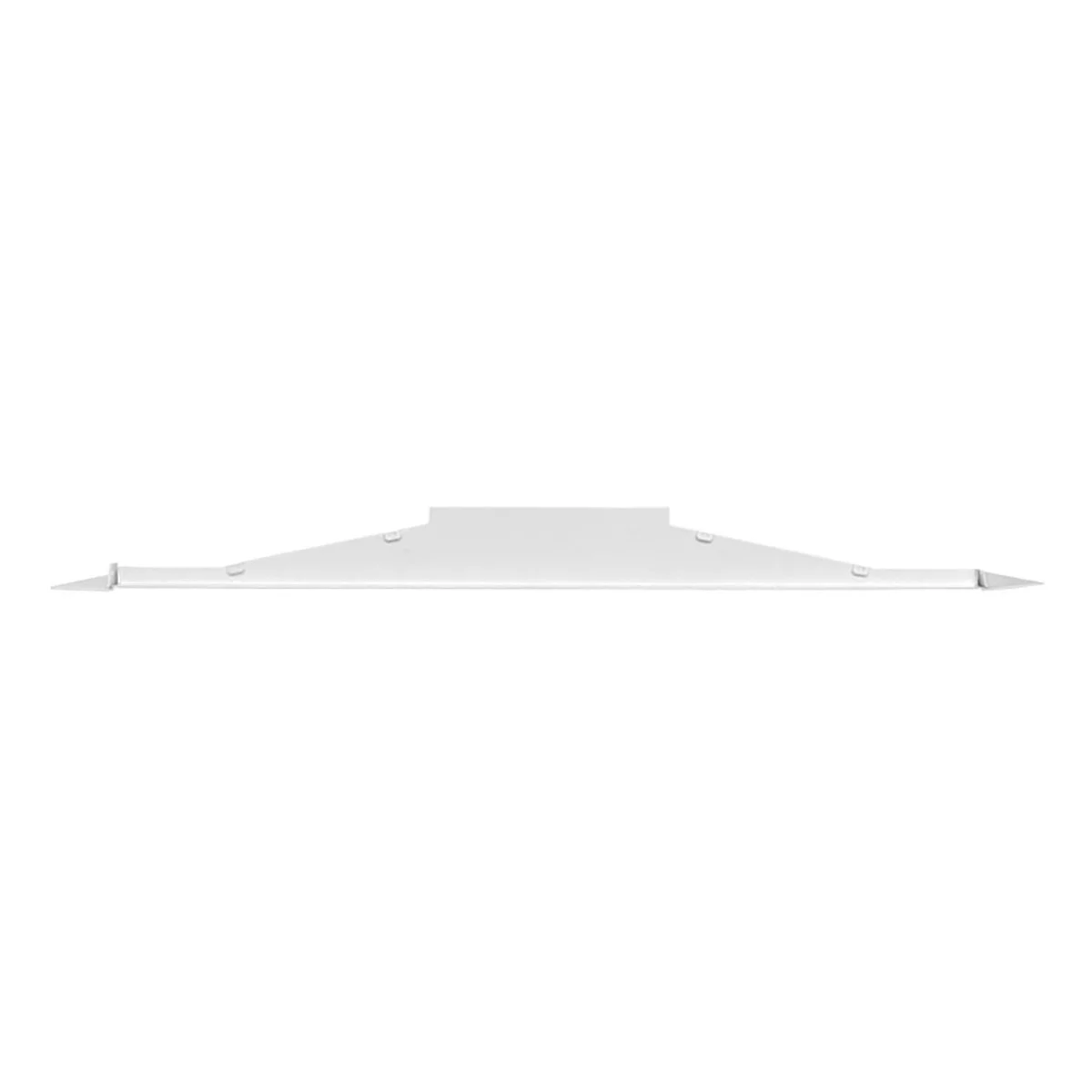

The LEDone LOC-22TRKT from the LOC-##TRKT family is a versatile 2×2 LED troffer retrofit kit designed to modernize existing troffers with high-efficiency, selectable performance. Built for demanding commercial environments, it combines multi-watt and multi-CCT flexibility with long-life operation and low-glare illumination.
Key Features and Benefits
- Field-selectable output with four wattage settings (15W/19W/24W/29W) for easier project standardization.
- Selectable 3500K, 4000K, and 5000K CCT to match visual comfort and task needs.
- DLC Premium listed and UL certified to support code-driven commercial upgrades.
- 0-10V dimming standard for smooth control integration and energy savings.
- Durable steel and aluminum construction with matte white finish for long-term reliability.
- Backed by a 5-year limited warranty for added confidence in retrofit applications.
Specifications
- Lumen Output: 2103.6|2664.56|3365.76|4066.2
- Voltage: 120-277V
- CRI: 83
- Efficacy (lm/W): 140
- Beam Angle: 110°
- Power Factor: 0.9758
- THD: 10.78
- Rated Life (70 Hours): 100000
- IP Rating: IP20
- Max Ambient Temperature: 50°C
- Form Factor: 2×2
- Weight: 5.75lbs
Common Uses
Ideal for warehouses, schools, factories, offices, supermarkets, logistics centers, and exhibition halls where efficient, controllable, and low-glare troffer lighting is required.
