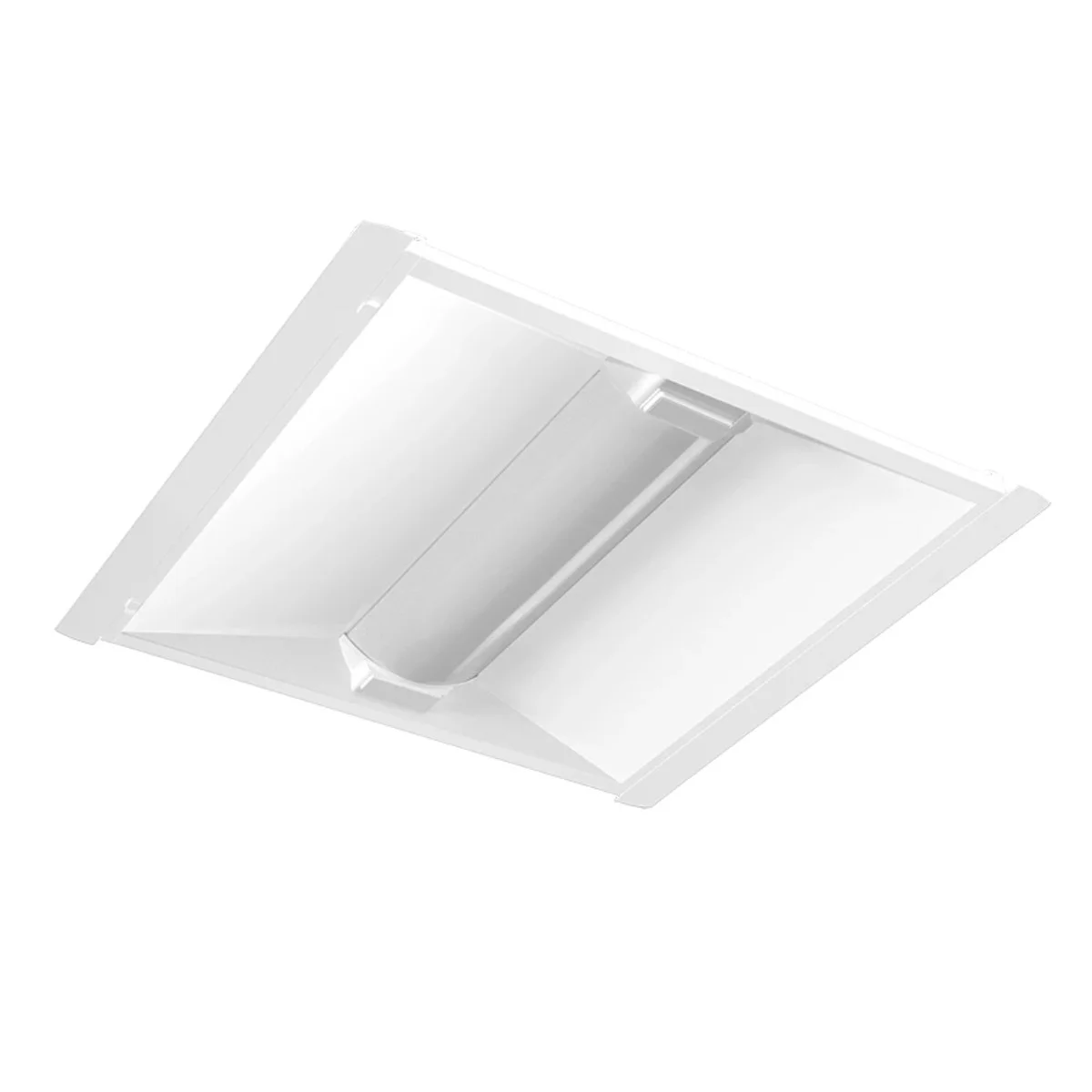

The LEDone LOC-22HTRK-MW25W3CCT is a 2×2 LED troffer retrofit kit designed to modernize existing troffers with efficient, glare-free illumination. As part of the LOC-##HTRK family, it combines field-selectable wattage and CCT with a built-in sensor base for smarter commercial lighting upgrades.
Key Features and Benefits
- Selectable output lets you tune light levels with 15W, 20W, or 25W settings from one fixture.
- Tri-CCT flexibility (3500K/4000K/5000K) supports varied visual tasks and space preferences.
- Built-in sensor base simplifies future control upgrades with compatible PIR and Bluetooth PIR accessories.
- High 140 lm/W efficacy helps reduce energy costs while replacing up to 150W HID performance levels.
- 0-10V dimming capability enables smooth control and additional energy savings.
- UL Listed construction and a 5-year limited warranty support dependable long-term operation.
Specifications
- Lumen Output: 2100/2800/3500
- Voltage: 120-277V
- CRI: 80
- Power Factor: 0.9
- THD: 15
- Beam Angle: 97°
- Operating Temperature: -40°C to 40°C (-40°F to 104°F)
- Rated Life (L70): 100000 hours
- IP Rating: IP20
- Housing: Die-formed 24-gauge steel with 87% reflective powder-coated reflector and clip-in diffused lens
- Dimensions: 22.87″ x 20.87″ x 1.61″
- Net Weight: 4.66 lbs
Common Uses
Ideal for warehouses, schools, manufacturing facilities, convention centers, offices, supermarkets, logistics centers, big-box retail stores, exhibition halls, and gymnasiums where efficient retrofit lighting is required.
