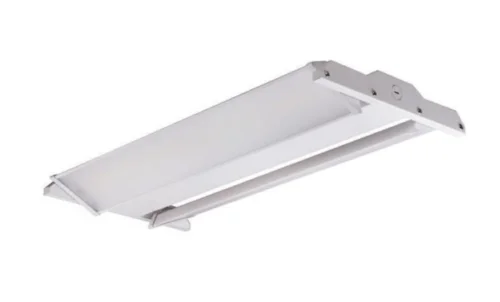

High efficacy LED linear high bay luminaire with selectable wattages 225W/165W/120W, 4000K/5000K CCT, and adjustable lumen outputs up to 29,250lm.
Key Features and Benefits
- Lightweight steel structure with glare-free lens.
- Rotatable light engines for multiple beam angles.
- High Power Factor, low THD UL listed driver with 5KV surge protection.
- Universal line voltage input 120-277V, 347/480V optional.
- 0-10V dimmable and plug & play bi-level occupancy sensor.
- Emergency backup with automatic switch to emergency mode.
- 5-year warranty for complete fixture.
Specifications
- Selectable wattages: 225W/165W/120W
- Selectable color temperature: 4000K/5000K
- Lumen output: 29,250lm/21,450lm/15,600lm
- CRI: 80+
- Voltage: 120-277V, 347/480V optional
- Emergency operation: 3000 lumens for 90 minutes
Common Uses
Ideal for industrial and commercial interior lighting, particularly in low ceiling applications.
