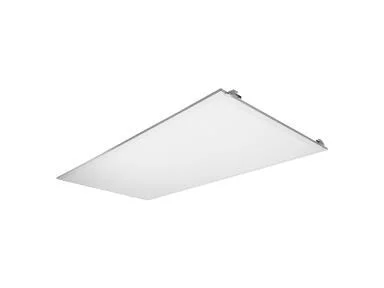

LED Flat Panel Retrofit Kit, 2’x4′, 22W, Color Selectable, Controls Ready

The LED Flat Panel Retrofit Kit is an enhanced product offering from MaxLite, providing an easy and cost-effective solution to upgrade fluorescent troffers to LED. The kit utilizes the existing troffer housing, reducing labor time and expense since installation can be performed from below the ceiling. An existing troffer can be retrofitted in just minutes! The kit’s LED light source delivers uniform illumination with minimal glare, creating a clean aesthetic perfect for offices, retail, healthcare, educational, hospitality, and other commercial facilities. With wattage and CCT select options, each unit offers more than 9 variations, providing flexibility to end users and distributors. The kit boasts one of the industry’s highest efficacies (140 LPW) and is DLC premium qualified, offering the best ROI for ESCO projects with maximum energy savings. As a true Controls Ready (CR) product, this series utilizes MaxLite’s patented c-Max plug and play system, providing end users with controls options even if the current system is not wired for controls.

Key Features and Benefits

• Quick installation without breaking the ceiling plenum
• Design prevents gaps in the retrofit fit
• Includes a safety cable to attach to housing
• Standard dimensions for 1×4, 2×2, and 2×4 retrofits
• Fits most existing troffers
• Selectable color temperature (3500K, 4000K, 5000K)
• Wattage 22W
• High efficacy (up to 152 lm/W)
• DLC Premium qualified
• Controls Ready with c-Max plug and play system
• 10-year standard warranty

Specifications

• Lumens Delivered: 3083-5462 lm
• Nominal Wattage: 22W
• Input Voltage: 120-277V AC
• Color Temperature: 3500K, 4000K, 5000K
• CRI: ≥80
• L70 Lumen Maintenance: 100,000 hours
• Dimming Technology: 0-10V
• Operating Temperature: -4°F to +122°F (-20°C to +50°C)
• Certifications: ETL listed for damp locations, RoHS Compliant, FCC
• Warranty: 10 years

Common Uses

This product is ideal for offices, retail spaces, healthcare facilities, educational institutions, hospitality venues, and other commercial environments.
